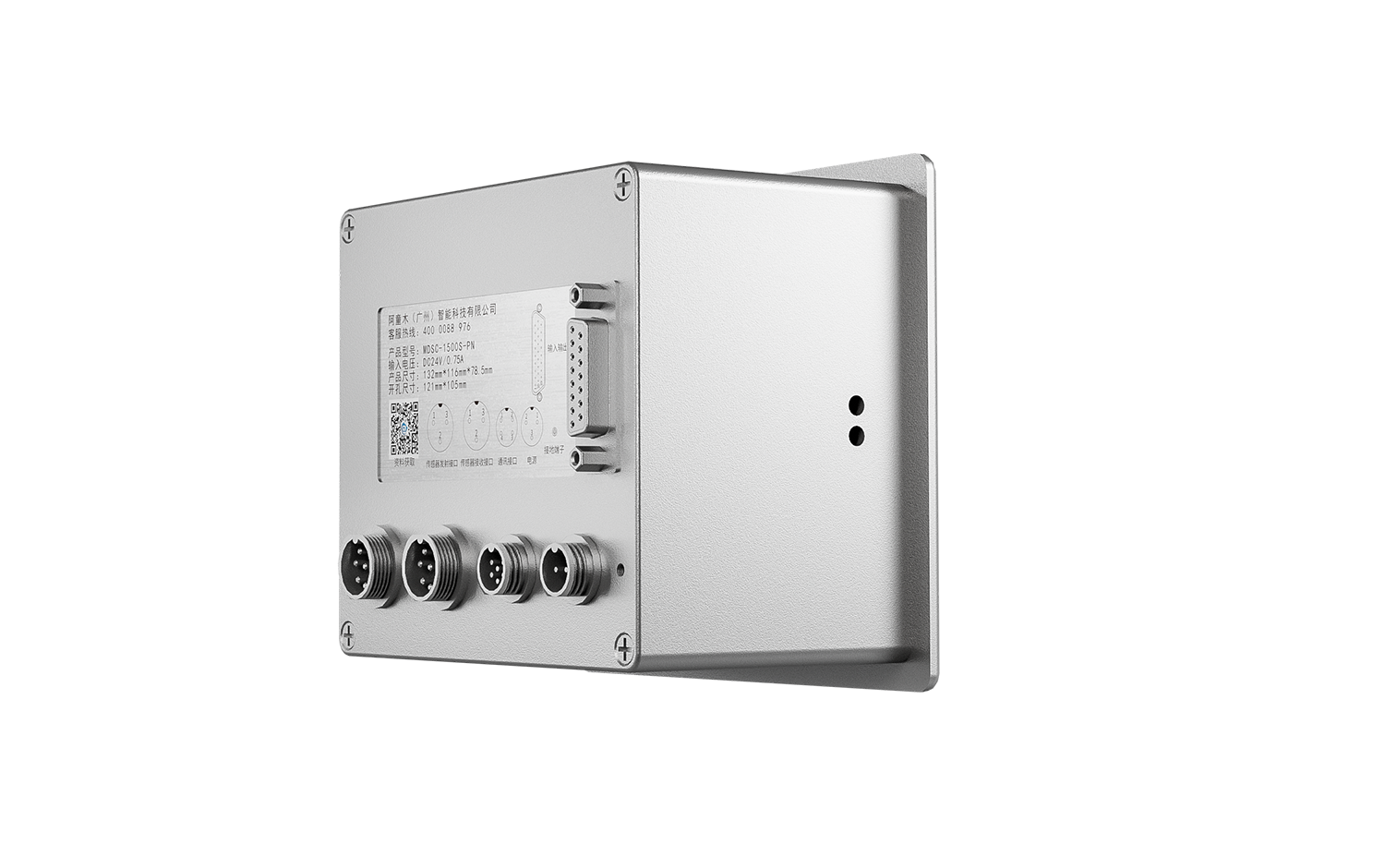

metal double sheet detector MDSC-1500S
- MDSC-1500S is a through-type double-sheet detector capable of detecting both magnetic and non-magnetic materials. It adopts a new generation of sensor technology with excellent anti-interference performance, ensuring stable detection in various complex environments. The device supports IO and PN communication modes, enabling remote teaching and learning of sheet materials, which greatly improves the flexibility and convenience of operation. With a built-in storage function for 200 sets of sheet parameters, it easily adapts to production lines with frequent material changes.
-
Detection Thickness
Iron
Stainless0.2-4.0mm
Aluminum
Copper0.2-5.0mm
Features
Built-in Sheet Material Storage Recipe
200 groups
Detectable for All Metal Sheets
Independent of Metal Material Types
Supports Communication
It Supports IO and PN Communication Methods
Fast Response Speed
Up to 1200 pcs/min
Specifications
| Main Unit Specifications | |||
| Response Speed | 1200pcs/min | ||
| Operating Voltage | 24V DC，+6V/-2V | ||
| Power Consumption | 10W（Measurement：Less than10 W，Idle：Less than6 W） | ||
| Inrush Current | 1A 1ms | ||
| Ambient Temperature | 0℃~50℃ | ||
| Size | Main Unit | 132 x 116 x 78.5(mm) | |
| Cutout Size for Embedded Mounting | 121 x 105(mm) | ||
| Protection Rating | Rear Housing | IP20 | |
| Front Panel Housing | IP65 | ||
| Weight | 730g | ||
| Features |
200 recipe groups
4 NPN or PNP outputs, max load: 48 VDC, 50 mA Profinet communication interface; configurable in system settings |
||
| Main Unit Dimensions |  |
||
| Sensor Specifications | |||
| Material Measurement Range | Iron | 0.2~4.0mm | |
| Stainless | 0.2~4.0mm | ||
| Aluminum | 0.2~5.0mm | ||
| Copper | 0.1~5.0mm | ||
| Ambient Temperature | 0℃~50℃ | ||
| Protection Rating | IP65 | ||
| Sensor Cable | Plug-in, 16 m (custom length available) | ||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
