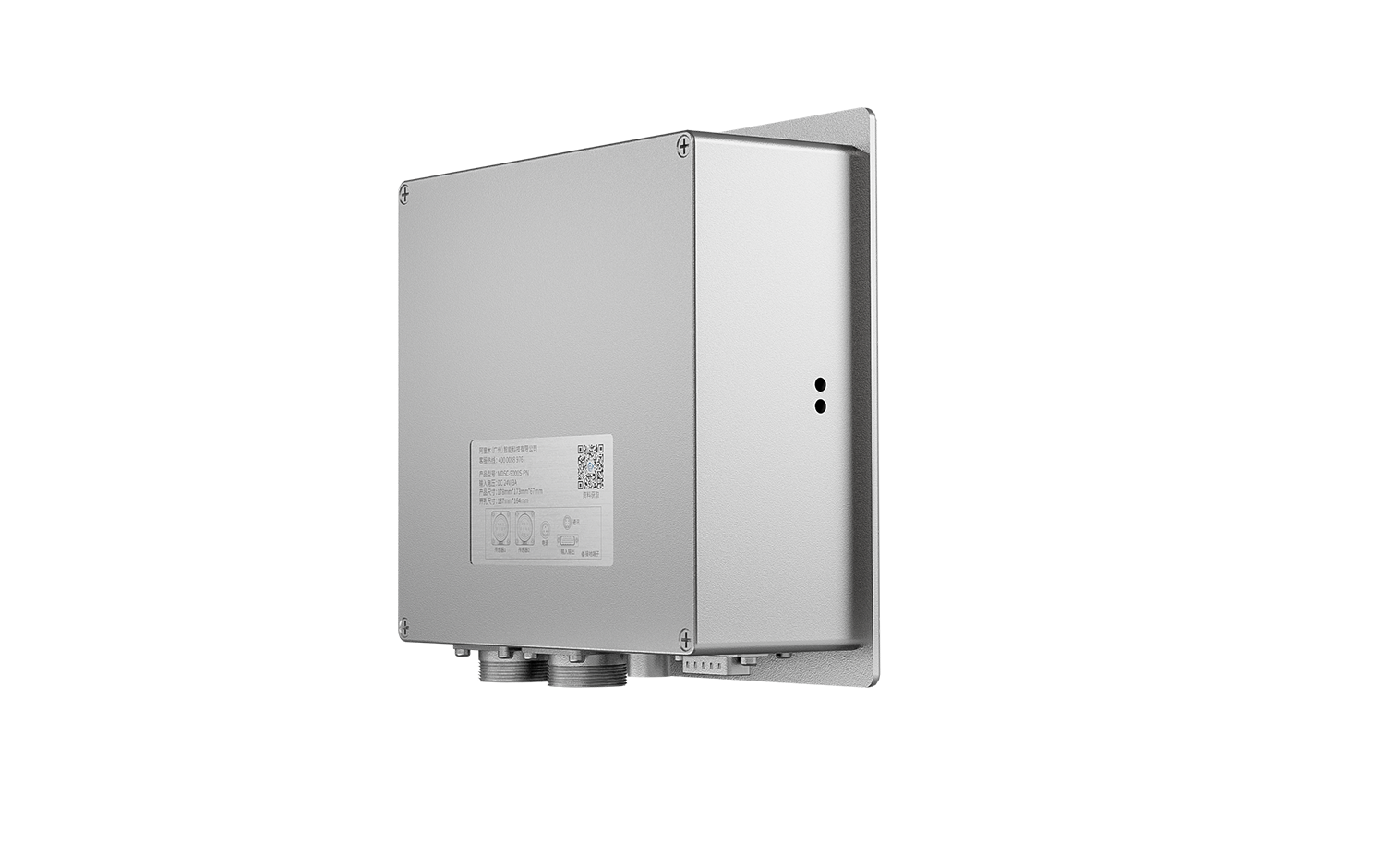

metal double sheet detector MDSC-9000S
- Based on the principles of electromagnetic induction and eddy current, the main controller can connect two sensors simultaneously to complete efficient and stable sheet overlapping detection tasks.It has a built-in storage function for 200 sets of sheet parameters, eliminating the trouble of repeated teaching.With an integrated design for both magnetic and non-magnetic materials, it is compatible with all sheet types.It supports both terminal and bus control solutions to achieve intelligent system control.
-
Detection Thickness
Magnetic Materials0.2-4.0mm
Stainless
Copper0.2-3.0mm
Aluminum0.2-4.0mm
Features
Built-in Sheet Material Storage Recipe
200 groups

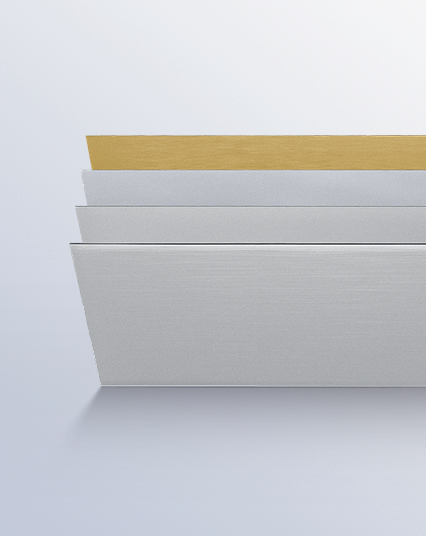

Detectable for All Metals
Fully upgraded, it is capable of stack detection for all metal sheet materials

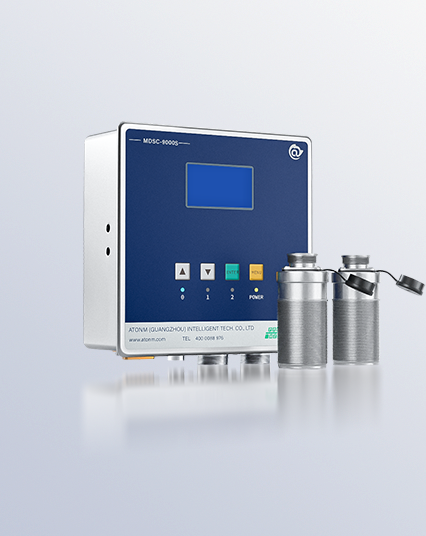

One controller connected to 2 sensors
Capable of simultaneous double-stamping-process stack detection
Built-in Sheet Material Storage Recipe
999 Groups of Recipes, Enabling Efficient Product Changeover
Specifications
| Main Unit Specifications | |||
| Response Speed | 200pcs/min | ||
| Operating Voltage | 24V DC，+6V/-2V | ||
| Power Consumption | 60W（ Measurement :Less than 60 W, Idle :Less than 12 W） | ||
| Inrush Current | 5A 1ms | ||
| Ambient Temperature | 0℃~50℃ | ||
| Size | Embedded | 178 x 178 x 67(mm) Cutout Size：167x 164(mm) |
|
| Base-mounted | 180.5 x 167.3 x 71(mm) | ||
| Protection Rating | Rear Housing | IP20 | |
| Front Panel Housing | IP65 | ||
| Weight | 1.2kg | ||
| Features |
200 recipe groups
12 opto-isolated input(s) with a common terminal 5 NPN or PNP outputs, max load: 48 VDC, 50 mA RS485 interface; configurable in system settings |
||
| Main Unit Dimensions |
Embedded
Base-mounted
|
||
| Sensor Specifications | |||
| Magnetic Material Measurement Range | 0.2~4.0mm | ||
| Non-magnetic Material Measurement Range | Stainless | 0.2~3.0mm | |
| Aluminum | 0.2~4.0mm | ||
| Copper | 0.2~3.0mm | ||
| Size | Diameter 44mm，Length 90mm | ||
| Ambient Temperature | 0℃~60℃ | ||
| Protection Rating | IP65 | ||
| Weight | 350g | ||
| Sensor Cable | Plug-in, 16 m (custom length available) | ||
| Sensor Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
