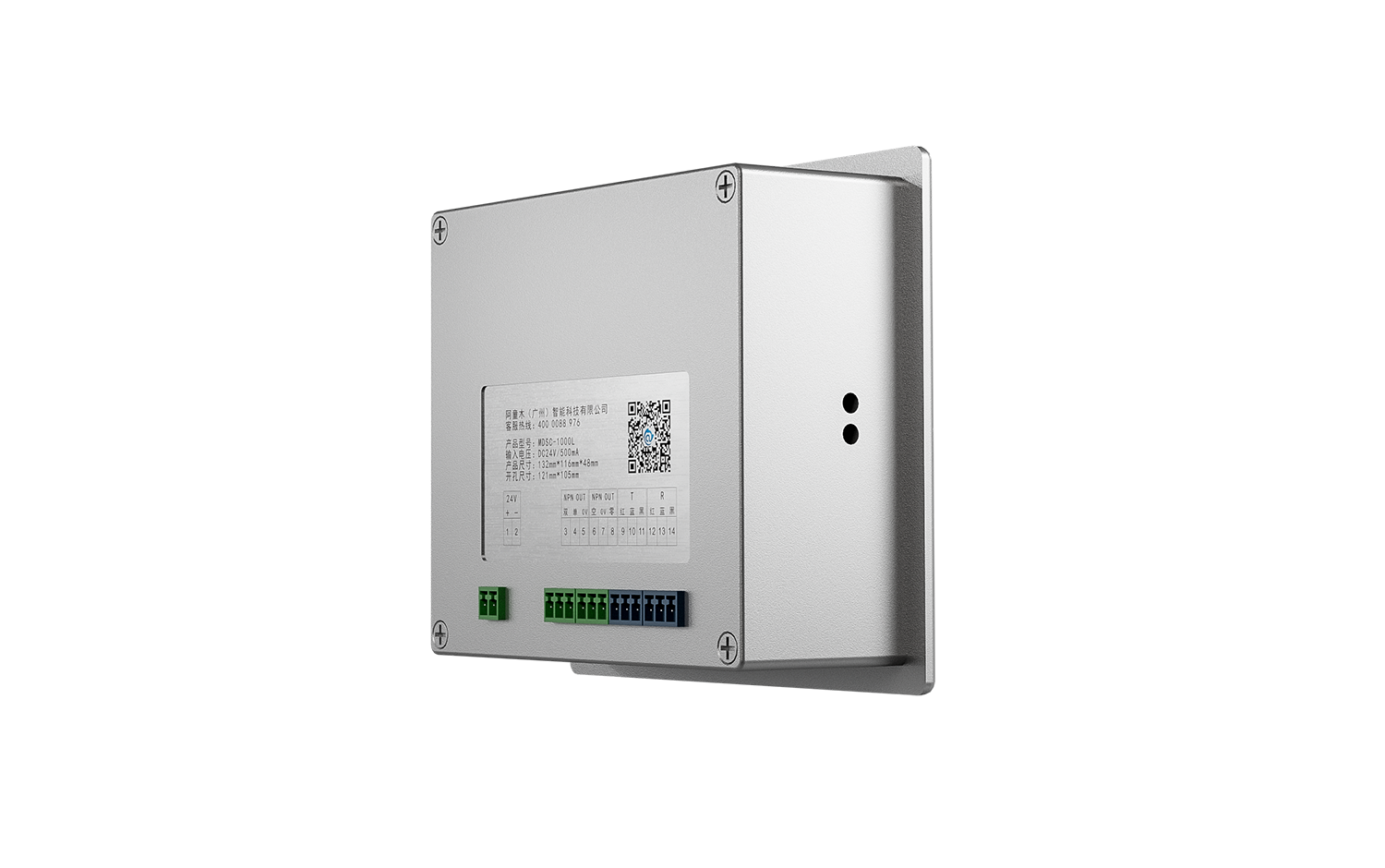

metal double sheet detector MDSC-1000L
- Lithium Battery Industry-Specific Double Sheet Detector - Designed for the industry's material characteristics of light weight, small size and thin thickness, it is equipped with customized M8 and M12 small probes to ensure high reliability.
-
Detection Thickness
Copper
Aluminum0.01 - 1mm
Features
Non-contact Detection
Avoid Material Damage and Loss
Built-in Sheet Material Storage Recipe
100 groups
Specifically for the Lithium Battery Industry
Equipped with M8 and M12 Small Probes

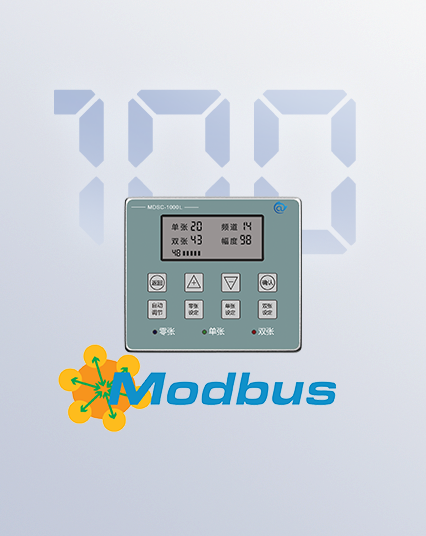

Supports Communication
Built-in Modbus485 Communication Module

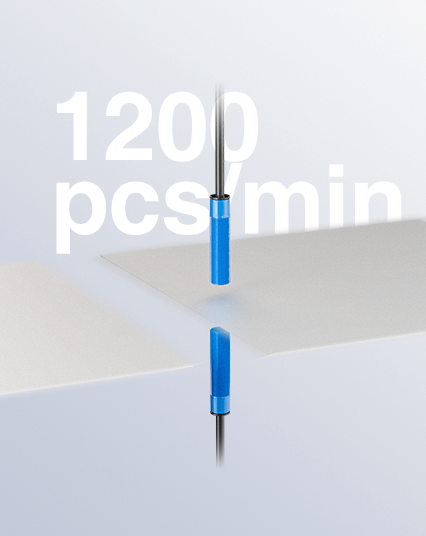

Fast Response Speed
Up to 1200 pcs/min
Specifications
| Model | MDSC-1000L | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/500mA | Response Speed | 1200 pcs/min |
| Detectable Materials | Copper, nickel, aluminum sheets, etc. | Detectable Thickness | Copper, nickel, aluminum: 0.01–1 mm |
| Control Output |
NPN single/double-sheet switch signal output, max load 50 mA / 48 V NPN zero-sheet switch signal output, max load 50 mA / 48 V Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |
||
| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
