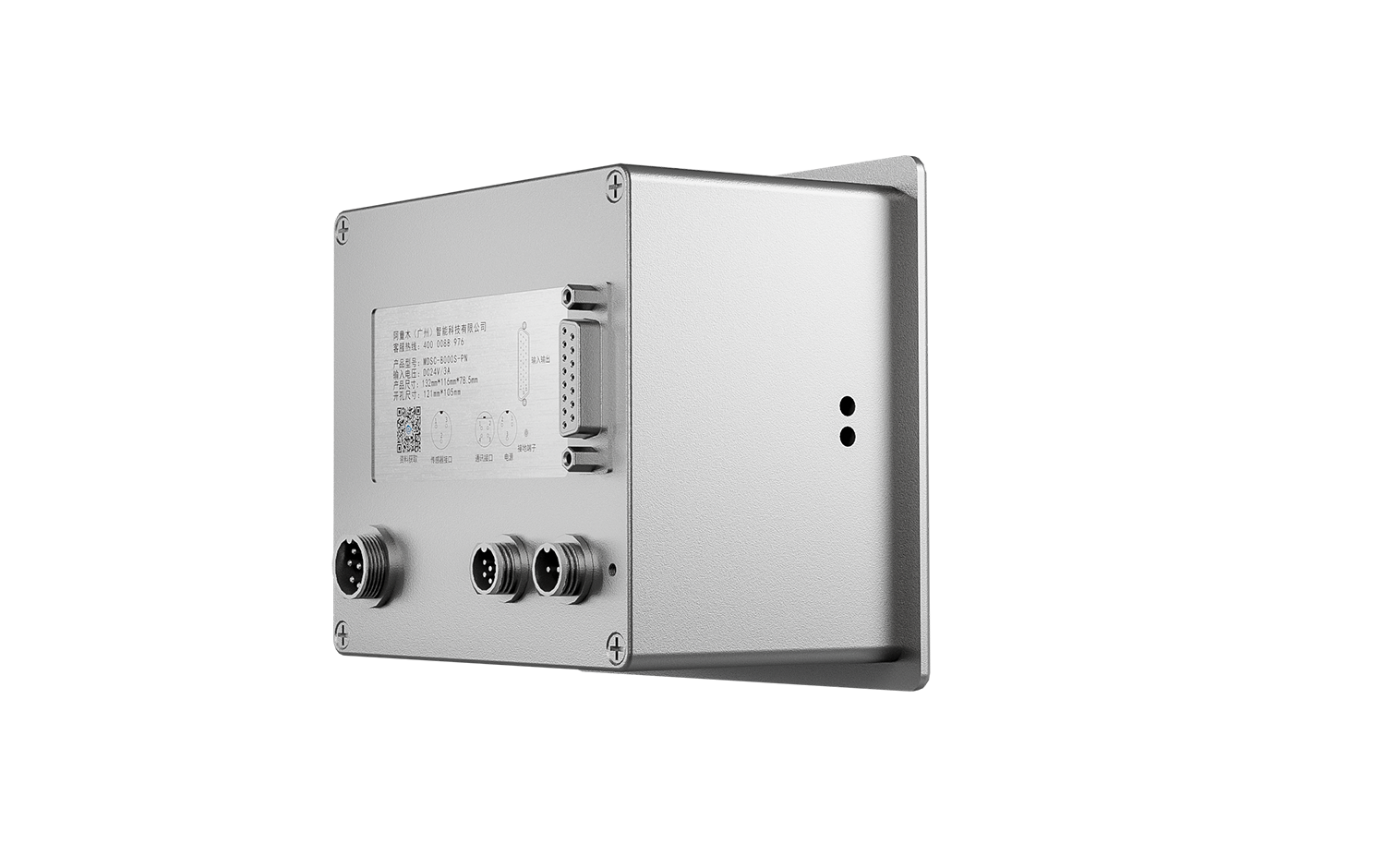

metal double sheet detector MDSC-8000S
- Tailored to the characteristics of large sheet materials in the automotive manufacturing and auto parts production industries as well as the requirement for single-side sensor installation, it realizes double-sheet feeding detection with a single-side probe.
-
Detection Thickness
Magnetic Materials0.2-4.0mm
Features
Built-in Sheet Material Storage Recipe
200 groups
Fast Response Speed
Up to 200 pcs/min
Supports Communication
Built-in Modbus485 Communication Module

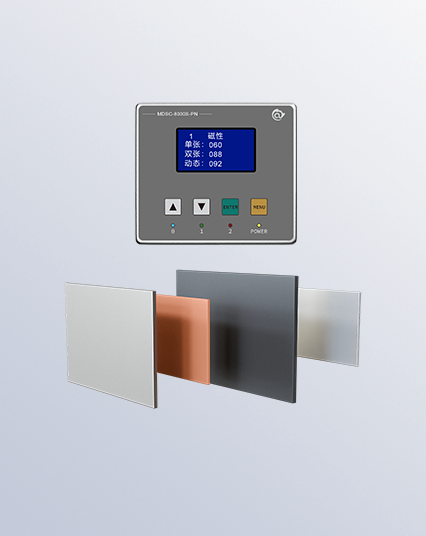

Single Sheet Learning
Requiring Only Single Sheet Material Learning
Specifications
| Model | MDSC-8000S | ||
| Main Unit Size | 132mm*116mm*78.5mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/3A | Response Speed | 200 pcs/min |
| Detectable Materials | Magnetic metal materials such as iron sheets and magnetic steel sheets | Detectable Thickness | 0.2–4.0 mm magnetic materials |
| Recipe Groups | 200 recipe groups | Control Output | 4 NPN or PNP outputs, max load: 48 VDC, 50 mA |
| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
