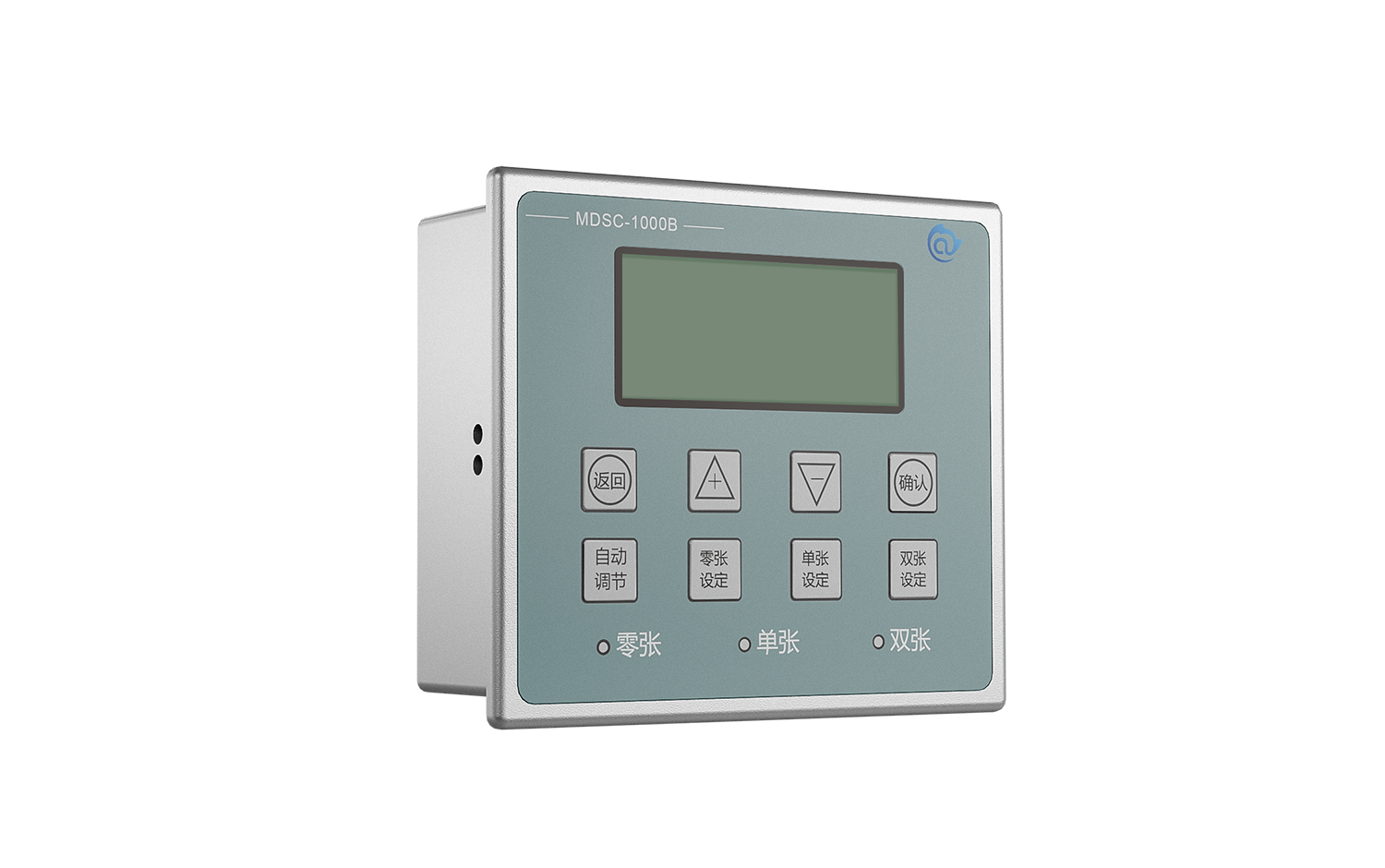

metal double sheet detector MDSC-1000B
- The cost-effective double sheet detector adopts an anti-interference circuit design and performs equally well in strong electromagnetic interference environments; it is equipped with a high-sensitivity probe, delivering higher detection efficiency and accuracy.
-
Detection Thickness
Iron
Stainless0.2-4.5mm
Copper0.1-4.0mm
Aluminum0.1-40mm
Features
Detectable for All Metal Sheets
Independent of Metal Material Types
Non-contact Detection
Avoid Material Damage and Loss

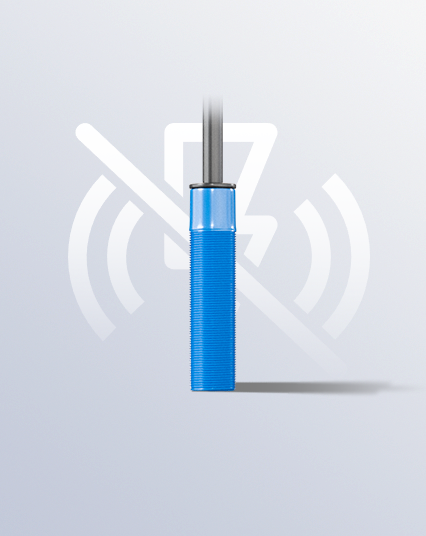

Strong Anti-interference Ability
3mm Metal Housing, Adopting SMD Components and 4-Layer PCB Design
Fast Response Speed
Fast Response
Speed Up to 1200 pcs/min
Specifications
| Model | MDSC-1000B | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/500mA | Response Speed | 1200pcs/min |
| Detectable Materials | Steel plate, iron plate, copper plate, aluminum plate, galvanized plate, stainless steel, etc. | Detectable Thickness | Iron/stainless steel: 0.2–4.5 mm; copper: 0.1–4.0 mm; aluminum: 0.1–40 mm |
| Control Output |
1. NPN single/double-sheet switch signal output, max load 50 mA / 48 V 2. PNP single/double-sheet switch signal output, max load 50 mA / 48 V Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |
||
| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
