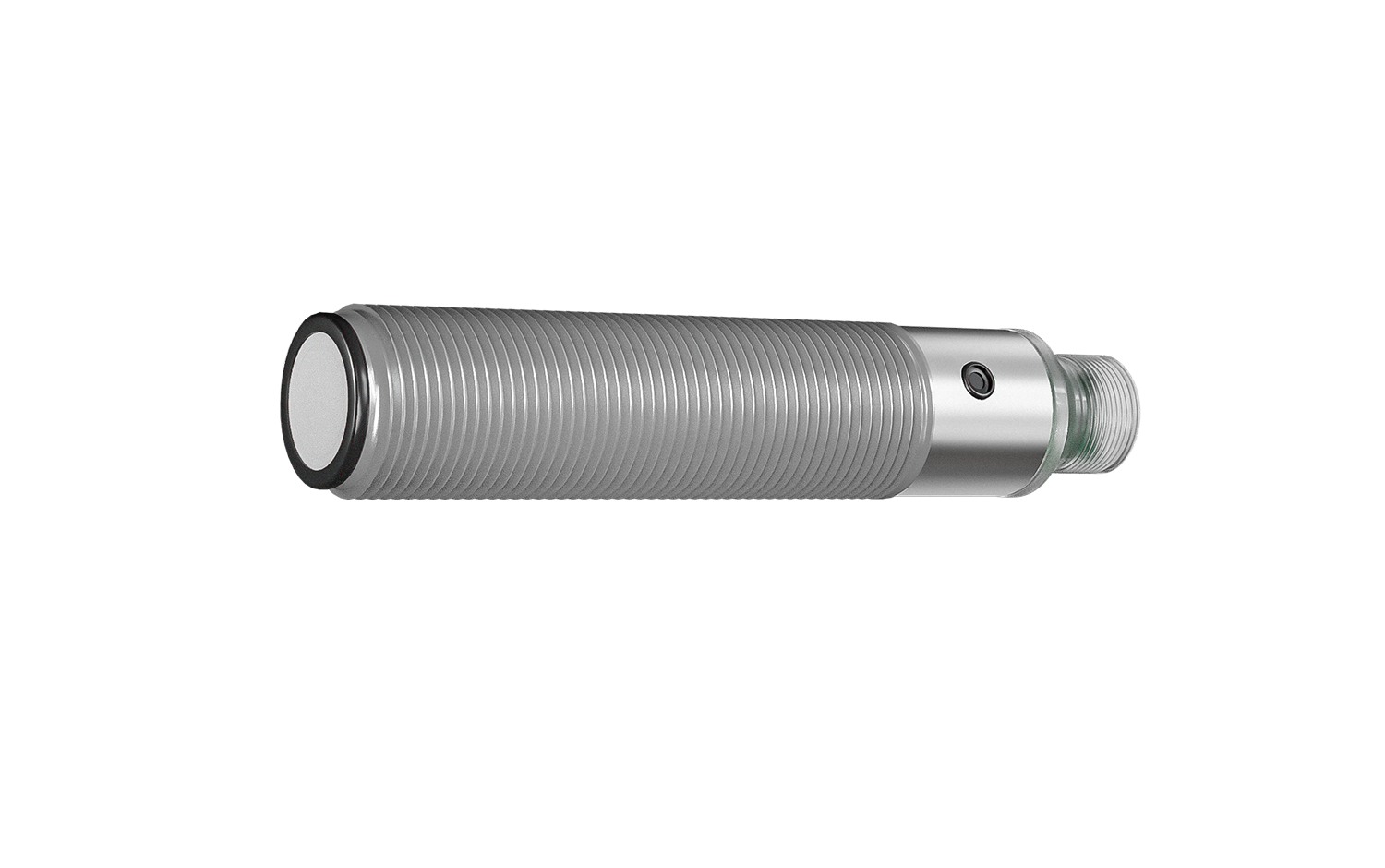

Ultrasonic Sensor US1-L400-S50
- A displacement correction inspection sensor unaffected by harsh environments such as dust and oil mist. It features programmable switching output, analog current/voltage output, and adjustable hysteresis function.
Specifications
| Model | US1-L400-S50 | ||
| Maximum Sensing Distance | 400mm | Minimum Sensing Distance | 50mm |
| Sensing Range | 50...400mm | Beam Angle | ±8/±7° |
| Switching Frequency (Switch Output) | 10Hz | Response Time (Switch Output) | 500ms |
| Hysteresis | 1% | Repeatability | 0.5% |
| Resolution | 1mm | Linearity Error | 1% |
| Operating Temperature Range | -20℃...+60℃ | Temperature Compensation | · |
| Operating Voltage | 15-30Vcc | Thermal Drift | 5% |
| Ripple | ≤7% | Leakage Current | 10μA@30Vcc |
| Output Voltage Drop | Max 2.2V max.（IL=100mA) | No-load Current | ≤50mA |
| Output Current (Switch Output) | 100mA(³） | Minimum Load Resistance (Analog Voltage Output) | 3kΩ |
| Adjustable Switch | Teach Button | Power-on Delay | ≤500 ms (switch output), ≤900 mA (analog output) |
| Protection Rating | IP67（EN60529） | Housing Material | PBT / Stainless steel AISI 316L |
| Vibration Head Material | Glass Epoxy Resin | Tightening Torque | 1 Nm (plastic housing) / 50 Nm (metal housing) |
| Weight |
Plastic model: 70 g (connector), 110 g (cable) Metal model: 100 g (connector) / 170 g (cable) |
Operating Temperature | -35°C...+70°C, non-condensing |
| Dimensions |
|
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
