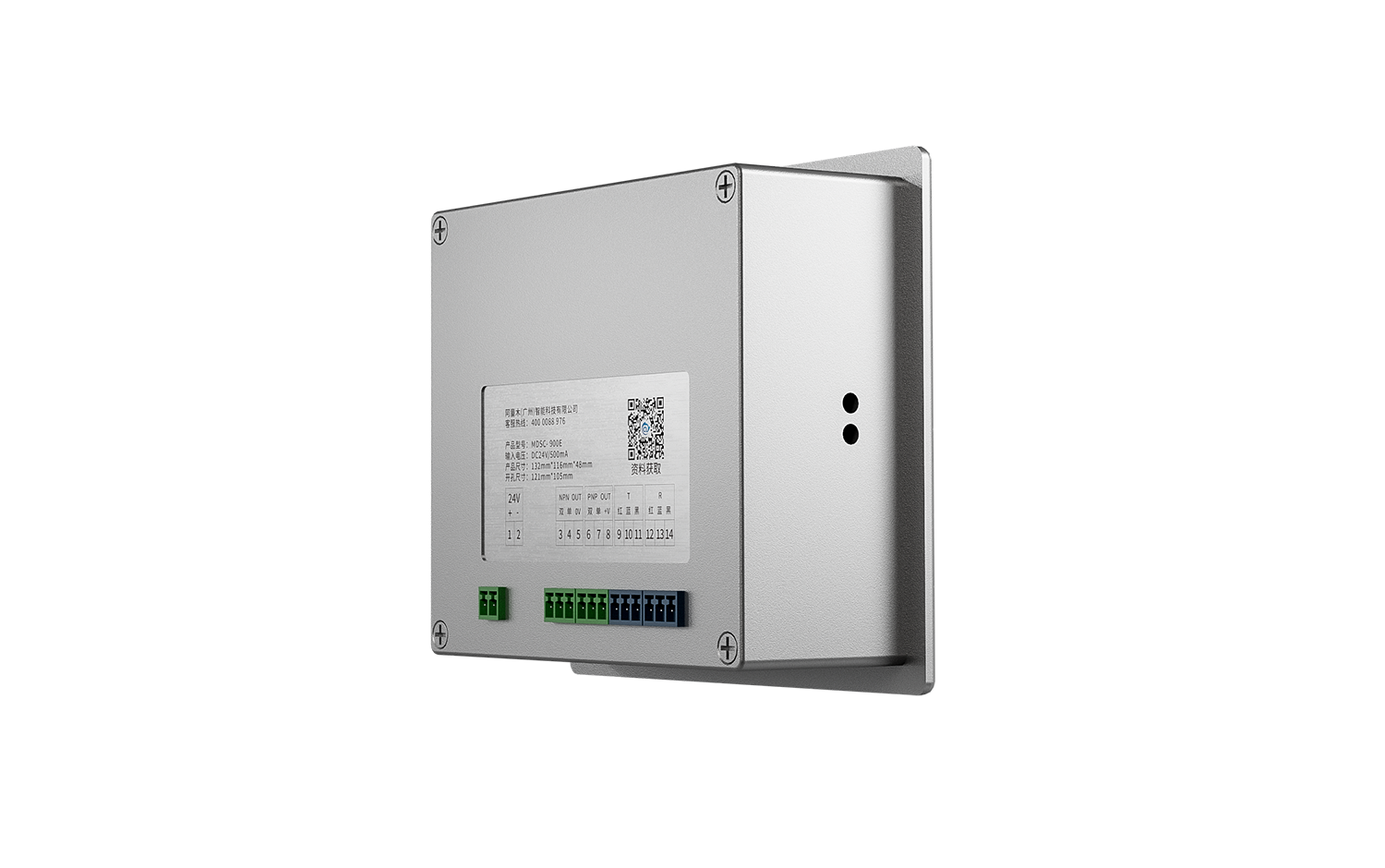

metal double sheet detector MDSC-900E
- The product features an all-metal housing and LED display, supporting automatic product parameter matching; it can address customers' needs for detecting double-sheet feeding under general circumstances.
-
Detection Thickness
Iron
Stainless0.2-2.5mm
Copper0.1-2.5mm
Aluminum0.1-8mm
Features
Detectable for All Metal Sheets
Independent of Metal Material Types

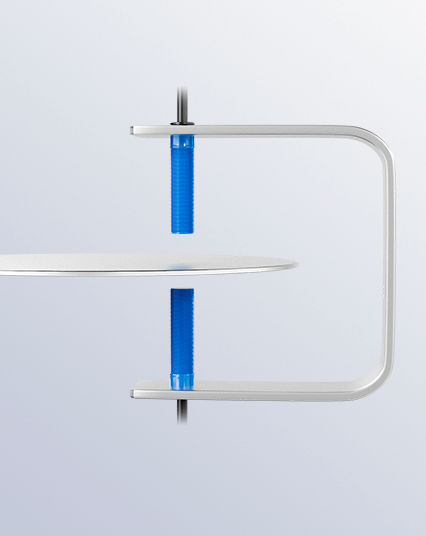

Non-contact Detection
Avoid Material Damage and Loss

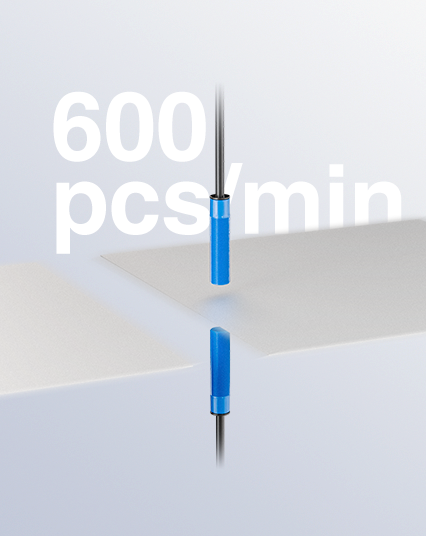

Fast Response Speed
Up to 600 pcs/min

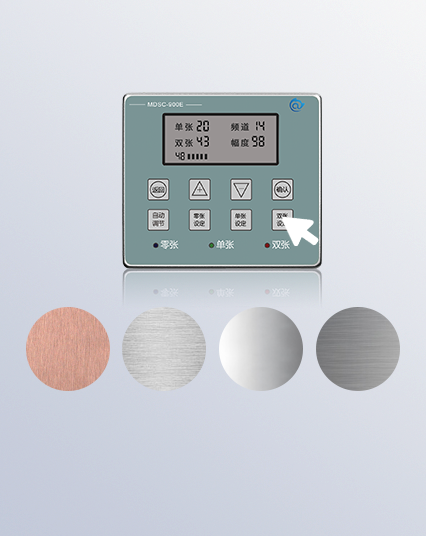

One-click Learning
Material Type Independent, No Repeated Debugging
Specifications
| Model | MDSC-900E | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/500mA | Response Speed | 600 pcs/min |
| Detectable Materials | Steel plate, iron plate, copper plate, aluminum plate, galvanized plate, stainless steel, etc. | Detectable Thickness | Iron/stainless steel: 0.2–2.5 mm; copper: 0.1–2.5 mm; aluminum: 0.1–8.0 mm |
| Control Output |
1. NPN single/double-sheet switch signal output, max load 50 mA / 48 V 2. PNP single/double-sheet switch signal output, max load 50 mA / 48 V Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |
||
| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
