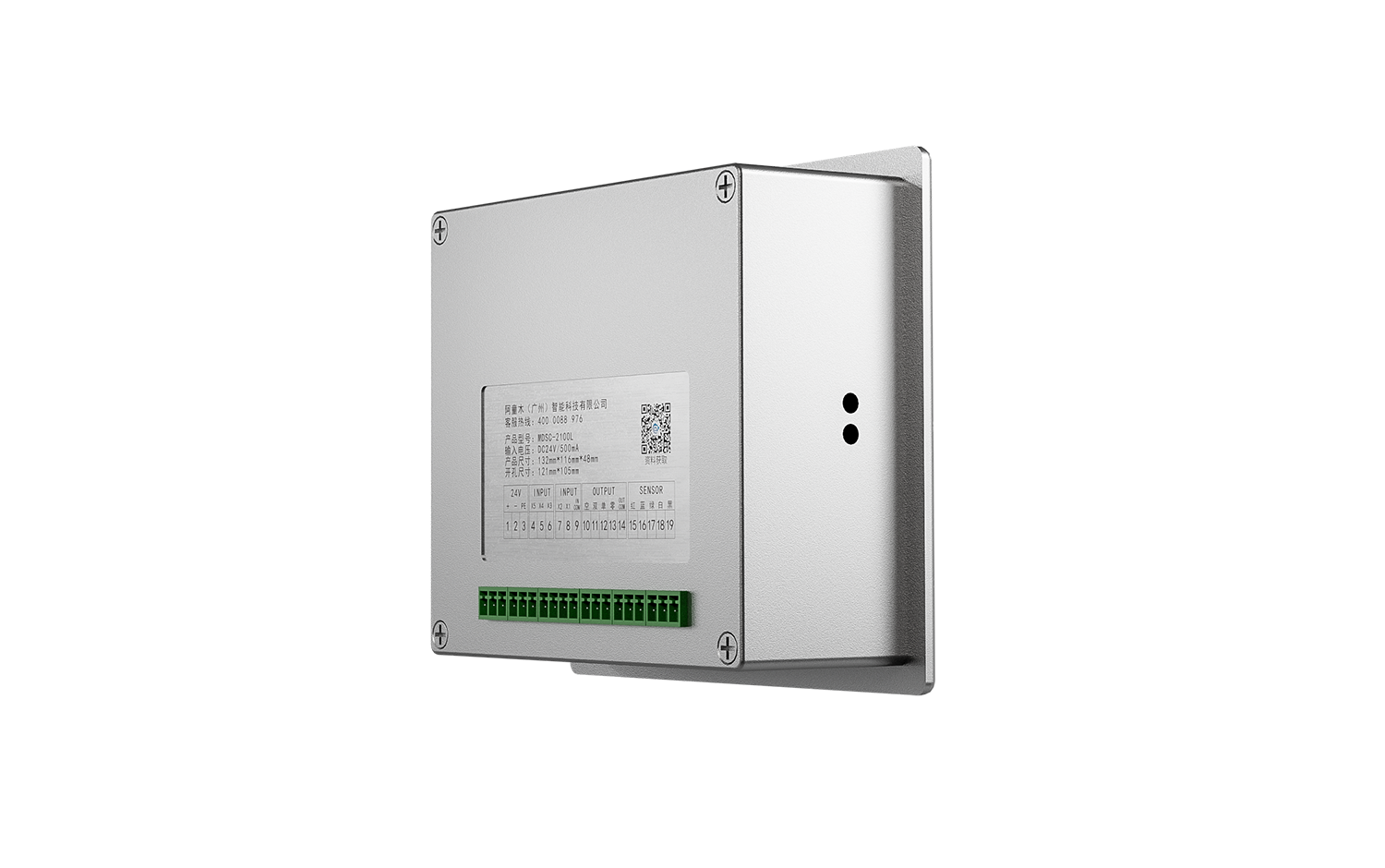

metal double sheet detector MDSC-2100L
- Designed for thin materials in the lithium battery industry; it is equipped with a customized high-sensitivity compact probe sensor, which can be installed and used even on equipment with a compact internal structure, meeting the requirements of high-cycle production.
-
Detection Thickness
Copper
Aluminum0.01 - 0.1mm
Stainless0.1-0.5mm
Features
Built-in Sheet Material Storage Recipe
100 groups

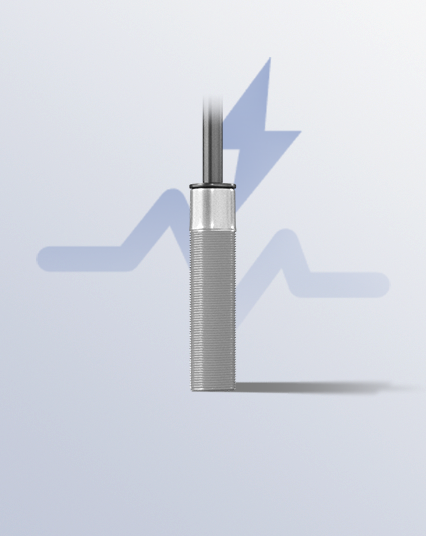

Compact Single-probe Design
Suitable for Tight Installation Spaces
Fast Response Speed
Up to 1200 pcs/min
Mixed Materials Detectable
Capable of Distinguishing Lithium Battery Tab Copper Foil and Aluminum Foil
Specifications
| Model | MDSC-2100L | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Input Voltage | DC 24V/500mA | Response Speed | 1200 pcs/min |
| Detectable Materials | Copper sheets, aluminum sheets, aluminum alloy, stainless steel sheets, etc. | Detectable Thickness | Copper/aluminum: 0.01–0.1 mm; stainless steel: 0.1–0.5 mm |
| Recipe Groups | 100 recipe groups | Control Output |
Single/double-sheet switch signal output, max load 50 mA / 48 V
Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |

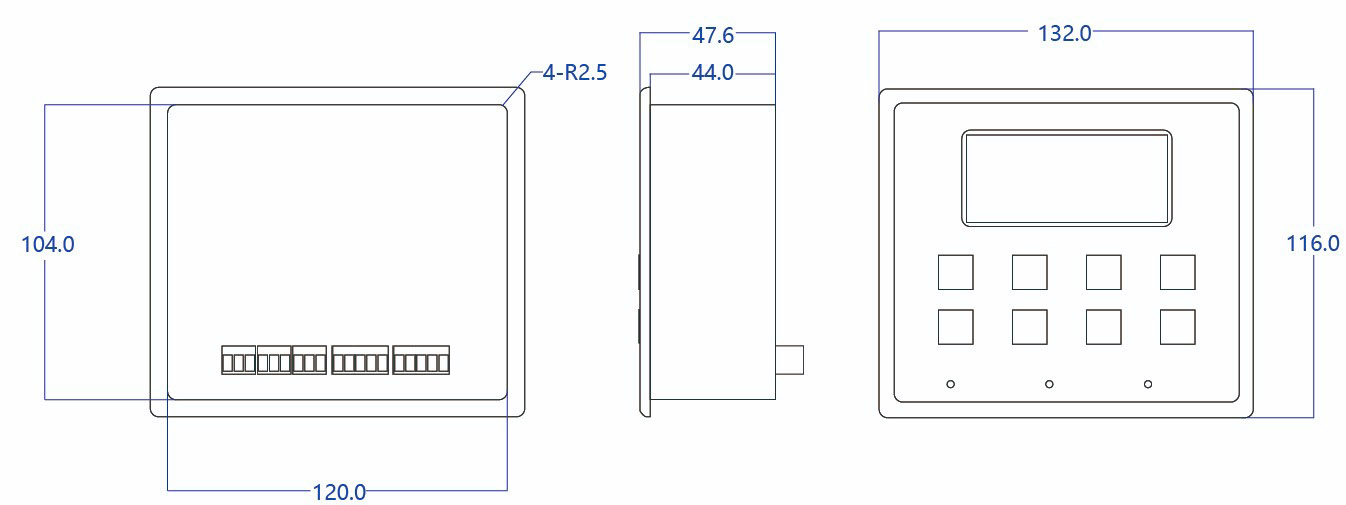

| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
