color sensor CL1
- It automatically mixes and generates the required light source for stable color detection. It features intelligent and digital sensitivity adjustment, high-definition dual digital display, and easy operation for quick mastery. The 8-channel design enables simultaneous recognition of 1 color with a 200 μs high-speed response time. Multiple sensor heads are available for selection, resulting in a wide range of applications.
Features
Wide application range

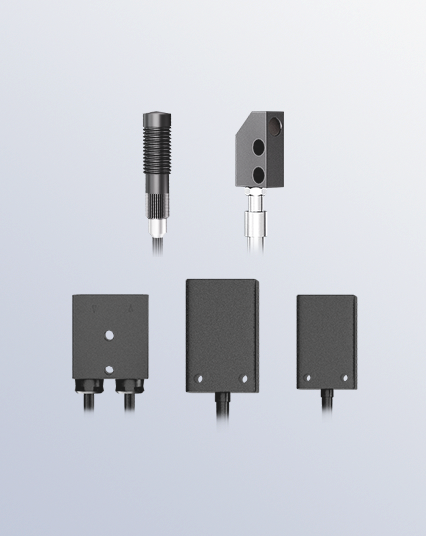

Multiple sensor heads available for selection to meet different detection scenarios
Fast response speed
200μs
8-channel design, capable of identifying 1 colors simultaneously
Multiple detection modes are suitable for various application requirements, helping enterprises save space and costs
Dual digital display with excellent visibility
High-definition dual digital display, with simple operation and easy usability
Specifications
| Model | CL1-N3S1(NPN) / CL1-P3S1(PNP) | ||
| Light Source | Red LED, Green LED, Blue LED | Response Time | 200μs（HSP）/1ms（FINE） |
| Indicators | Output: Red LED, External Sync Input: Red LED, Match Rate/Received Light Intensity: LED (Green/Red) | Error Display | Excessive Light Intensity, Insufficient Light Intensity, Insufficient Color Difference |
| Calibration Method | Single-point / Two-point Calibration | Tolerance Adjustment | Digital Display Numerical Value Setting |
| Discrimination Mode | C/C+I/I | Timer Function | Timer OFF/ON Delay/OFF Delay/Single Trigger Shot |
| Output Selection |
Match Output: Activated when the target color matches the stored color； Non-match Output: Activated when the target color does not match the stored color |
||
| External Sync Input | Response Speed：Max 500μs | External Calibration Input | Input Response Time：Min 20ms |
| Stored Color Selection | Data Library Selection (from external input or key operation), no voltage input | Control Output | NPN（PNP)：Max40VDC Max（100mA），Residual Voltage：Max1.0V |
| Protection Circuit | Reverse polarity protection (power), overcurrent protection (output), overvoltage (output) | Power | 12 ~ 24VDC±10%，Pulse（P-P）：Max 10% |
| Current Consumption | Max 75mA | Ambient Light | Incandescent lamp：Max 5,000Iux，Direct sunlight：Max 10,000Iux |
| Housing Material | Polycarbonate | Weight (with 2 m cable) | About170g |
| Dimensions |
|
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
