color sensor CL3
- Integrated design with compact size; Two-point setup with both color and color mark modes for excellent performance; Adjustable detection hysteresis to eliminate the impact of measured object vibration; The unique dual-mode system features simultaneous color and light intensity detection, ensuring more stable and reliable testing.
Features

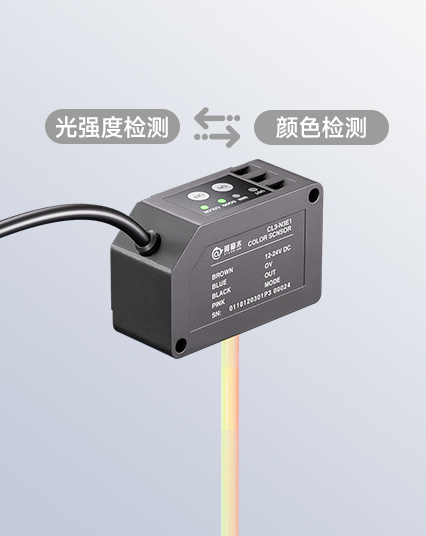

Unique dual-mode
Equipped with both color + light intensity detection functions, no false output even at critical positions where there is no background or object at the detection edge, ensuring more stable and reliable detection.

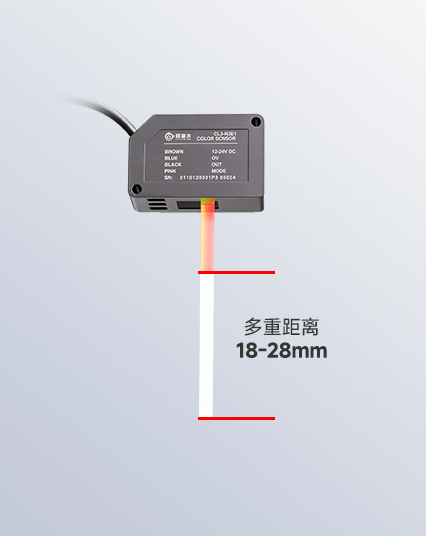

Multiple distance detection
Meets the detection needs of multiple scenarios, with a detection range of 18-28mm

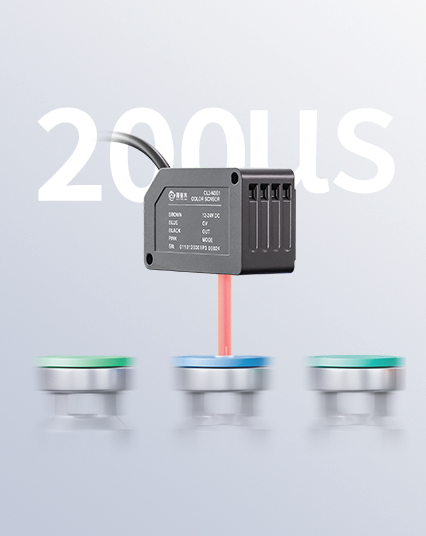

Fast response speed
200μs

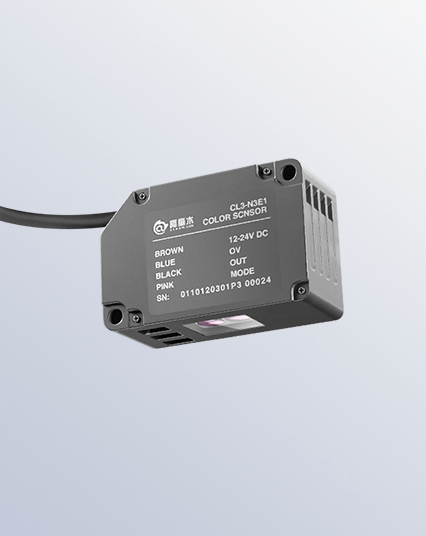

Integrated design
Compact size and flexible installation
Adjustable detection hysteresis
Can eliminate the impact of the measured object's jitter
Specifications
| Model | CL3-N3E1I(NPN) / CL3-P3E1I(PNP) | ||
| Sensing Distance | 18 ~ 28mm | Supply Voltage | 24V DC±10% Pulse P-P10% Below |
| Power Consumption | Power ≤850 mW (at 24 V power supply, current consumption ≤35 mA) | ||
| Mode Switch Input (Mark Mode) |
Low（ON）0 ~ 0.6V DC Outflow current ≤0.5 mA, input impedance ≤10 kΩ Low（OFF） 0 ~ 0.6V DC or open |
||
| Mode Switch Input (Color Mode) |
High （OFF） 12 ~ +V DC or open High （ON）12 ~ +V DC Inflow current ≤0.5 mA, input impedance ≤12 kΩ |
||
| Output Operation (Mark Mode) | When color label is detected, turn on | Output Operation (Color Mode) | Turn on when consistent |
| Short-circuit Protection | Equipped (auto-recovery) | Response Time | 200μs Below |
| Ambient Temperature | -10 ~ 55℃ Non-condensing | Ambient Humidity | 35 ~ 85%RH，Non-condensing |
| Emitter |
Composite LED: Red/Green/Blue (Emission Peak Wavelength：640nm/525nm/470nm) |
Weight | 约104g |

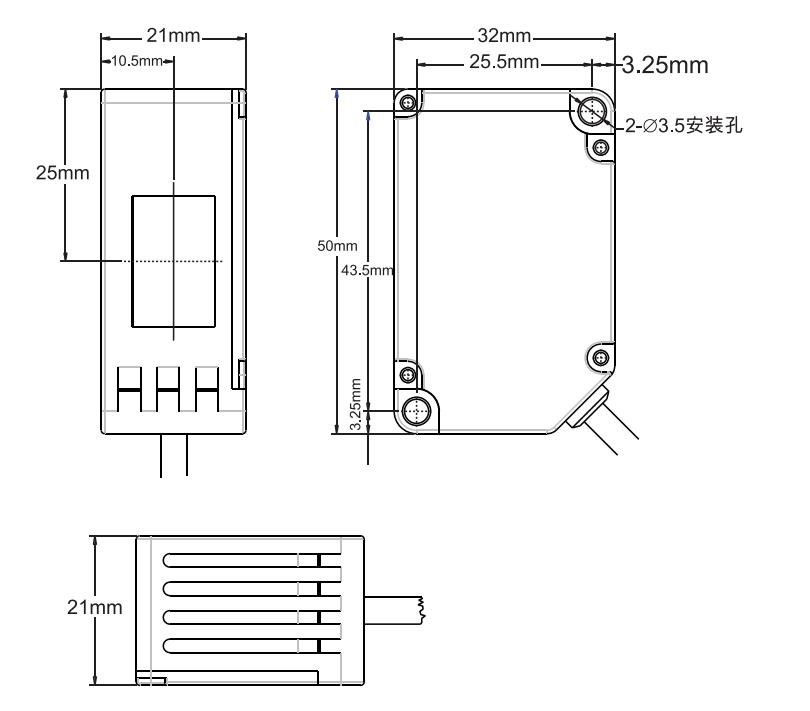

| Dimensions |
|
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
