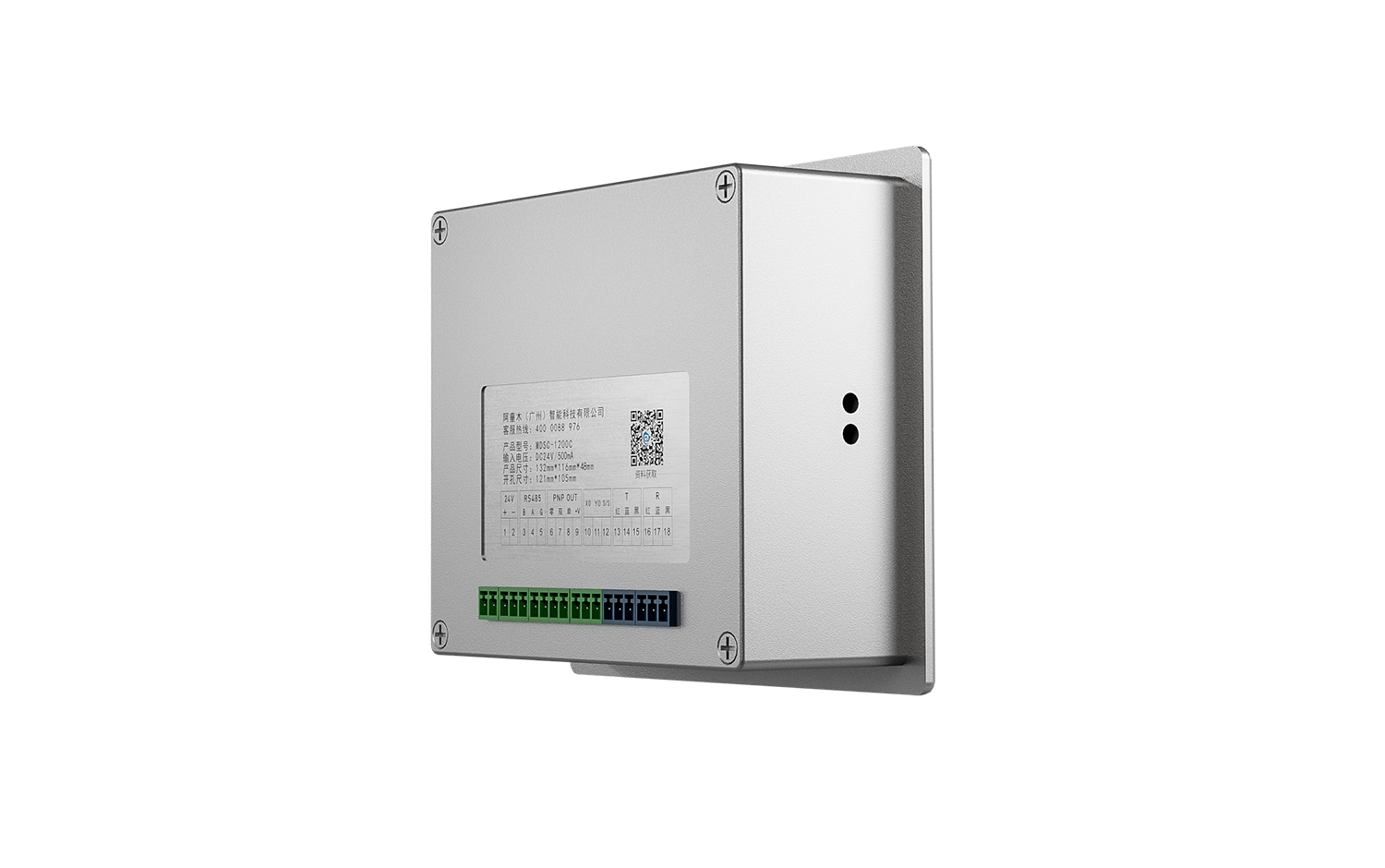

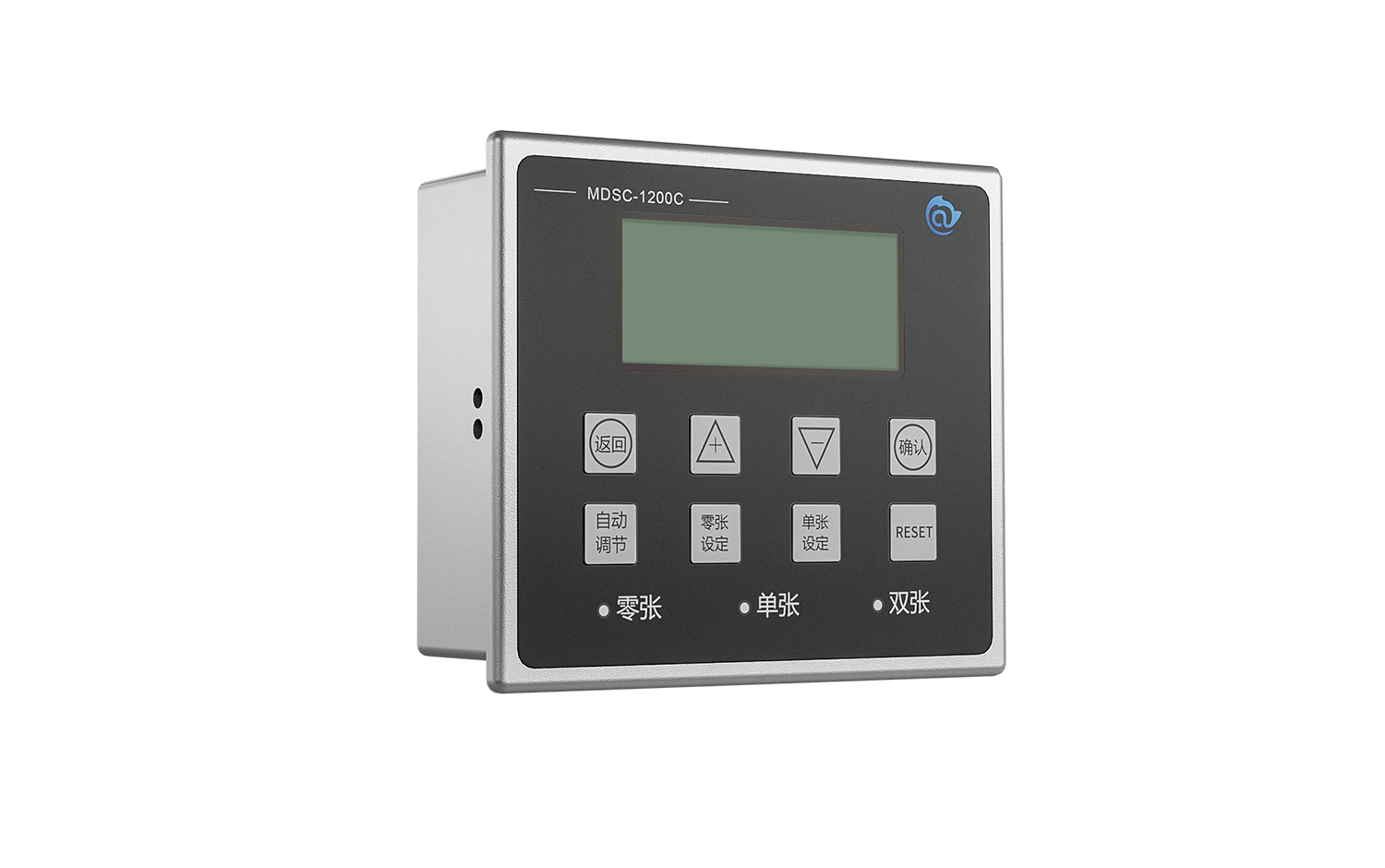

metal double sheet detector MDSC-1200C
- Sheet material learning can be performed via terminals to achieve remote teaching. It features high stability and strong anti-interference capability, and is widely used in the automotive and large household appliance industries.
-
Detection Thickness
Iron
Stainless0.2-4.5mm
Aluminum
Copper0.1-8mm
Features
Detectable for All Metal Sheets
Independent of Metal Material Types

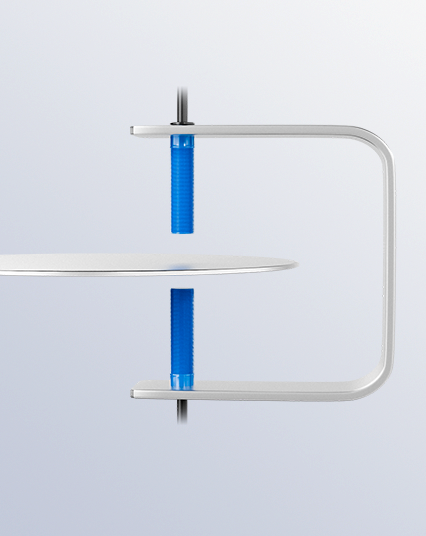

Non-contact Detection
Avoid Material Damage and Loss
Supports Communication
Built-in Modbus485 Communication Module
Built-in Sheet Material Storage Recipe
200 groups
Fast Response Speed
Up to 1200 pcs/min
Specifications
| Model | MDSC-1200C | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/500mA | Response Speed | 1200 pcs/min |
| Detectable Materials | Steel plate, iron plate, copper plate, aluminum plate, galvanized plate, stainless steel, etc. | Detectable Thickness | Iron/stainless steel: 0.2–4.5 mm; aluminum/copper: 0.1–8 mm |
| Recipe Groups | 100 recipe groups | Control Output |
NPN single/double-sheet switch signal output, max load 50 mA / 48 V
Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |
| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
