Color Sensor CE Series
- Atonm CE Series is a high-speed intelligent digital color sensor, available in standard and high-performance models. It features dual modes of CoL color detection and Brn color mark detection, supporting output action switching, multiple types of delay functions, and multiple circuit protections. It is suitable for high-speed and high-precision color identification and detection in industrial automation scenarios.
Features

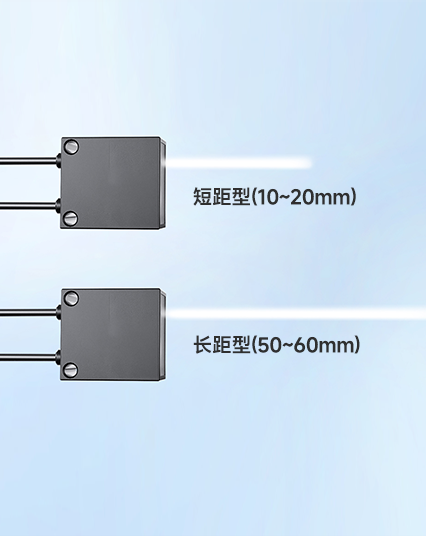

Dual Modes (Color/Color Mark)
Supports two detection modes for color recognition and color mark capture scenarios, no equipment replacement needed.

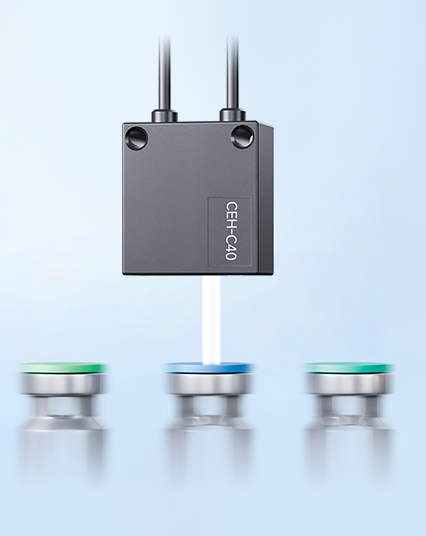

Allowable Vibration Tolerance
Handles slight material deviation, no extra positioning mechanism required, reducing debugging costs.

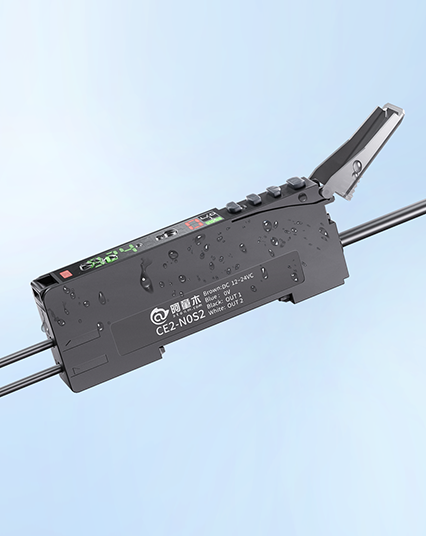

300μs High-Speed Response
Matches high-speed production lines, preventing missed detections and misjudgments.

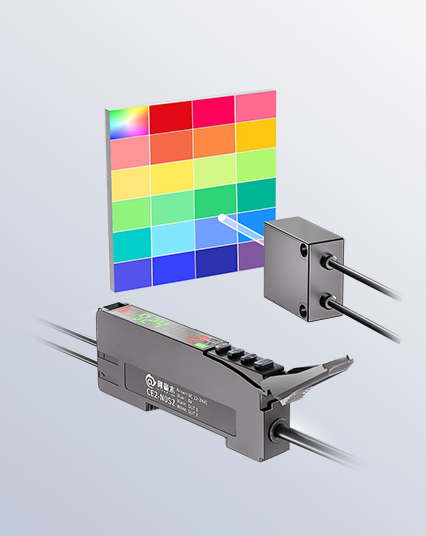

Accurate White Light Spot Recognition
High-brightness white light focusing, clearly recognizing subtle color differences and light-colored marks.
Specifications
| Model Type | Standard Type | High-performance Type | ||
| NPN | PNP | NPN | PNP | |
| Model | CE1-N0S1 | CE1-P0S1 | CE2-N0S2 | CE1-P0S2 |
| Output | 1 Output(s) | 2 Output(s) | ||
| Light Source | White LED(420~700nm) | |||
| Supply Voltage | DC12V~24V ±10% Fluctuation(P-P)10% | |||
| Response Time | HSP: 300us; FINE:1ms; MEGA: 16ms; | |||
| Function Mode | CoL Mode: Color Detection Mode; Brn Mode: Color Mark Detection Mode; |
|||
| Output Operation | L-ON(NO) / D-ON(NC) Switchable | |||
| Delay Function | OFF Delay Timer/ON Delay Timer/Single Trigger Timer | |||
| Protection Circuit | Reverse Polarity Protection/Overcurrent Protection/Overvoltage Protection | |||
| Power Consumption | Normal Mode:Max960mw (At 24 V, max. 20 mA；At 12 V, max. 40 mA) |
|||
| Ambient Illuminance | Incandescent lamp:Max 20,000lux; Direct sunlight:Max30,000lux | |||
| Temperature Range | 动作时:-20°C~+55°C; 保存时:-20°C~+70℃; | |||
| Humidity Range | 35%~85%RH;(Non-condensing) | |||
| Material | Polycarbonate(PC) | |||
| Weight | About 55g | |||
| Dimensions |
|
|||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
