Laser Sensor LD1-H100
- Digital CMOS laser sensors feature small size, low photoelectric consumption and high precision; they can accurately detect the relative displacement of objects to be measured and are often used for measuring physical quantities such as length, distance, vibration, speed and position.
Features
Non-Contact Measurement Wide Applicability
Wide Applicability: Detects both metal and plastic materials.

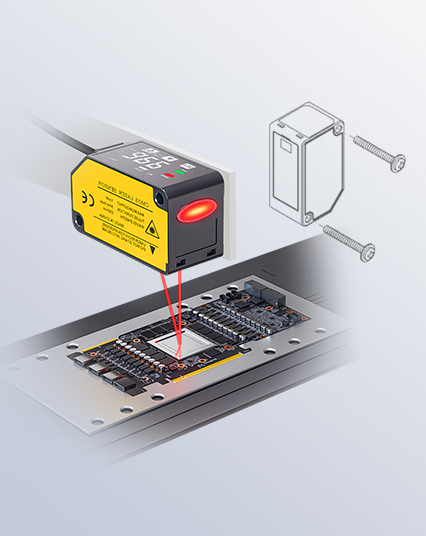

Detection Distance: 65-135mm
Adaptable to various installation scenarios, the 65-135mm detection range flexibly meets the needs of different workstations.
Dual Output (Switch + Analog)
Supports two types of signal output, compatible with various control systems for enhanced versatility.
High Precision
Accurate and stable, with detection error controlled within 100 μm, ensuring consistent and reliable results.
Specifications
| Model | LD1-H100N/NA(NPN) / LD1-H100P/PA(PNP) | Model Type | Dual-output Type |
| Center Distance | 100mm | Measurement Range | ±35mm |
| Repeatability | 100μm | Linearity | ±0.1%F.S. |
| Temperature Characteristic | 0.03%F.S./℃ | Light Source | Red semiconductor laser class 2, max output 1 mW; wavelength: 655 nm |
| Beam Diameter | About φ150μm | Supply Voltage | 12V-24V DC±10% Pulse P-P 10% |
| Current Consumption | ≤40 mA (at 24 VDC), ≤60 mA (at 12 VDC) | ||
| Control Output(NPN) |
[NPN type] NPN open-collector transistor ··Max sink current: 50 mA ··Applied voltage: ≤30 VDC (between control output and 0V) ··Residual voltage: ≤1.5 V (at 50 mA sink current) ··Leakage current: ≤0.1 mA |
Control Output<(PNP)/td> |
[PNP type] PNP open-collector transistor ··Max sink current: 50 mA ··Applied voltage: ≤30 VDC (between control output and +V) ··Residual voltage: ≤1.5 V (at 50 mA source current) ··Leakage current: ≤0.1 mA |
| Output Operation | Switchable: ON when light received / ON when light not received | Short-circuit Protection | Equipped (auto-recovery type) |
| Response Time | Switchable: 1.5 ms / 5 ms / 10 ms | External Input | NPN non-contact input; valid: 0–+1.2 VDC; input impedance: approx. 10 kΩ |
| Protection Structure | IP67(IEC） | Weight | About 35g (without cable)、About 85g (with cable) |
| Dimensions |
|
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
