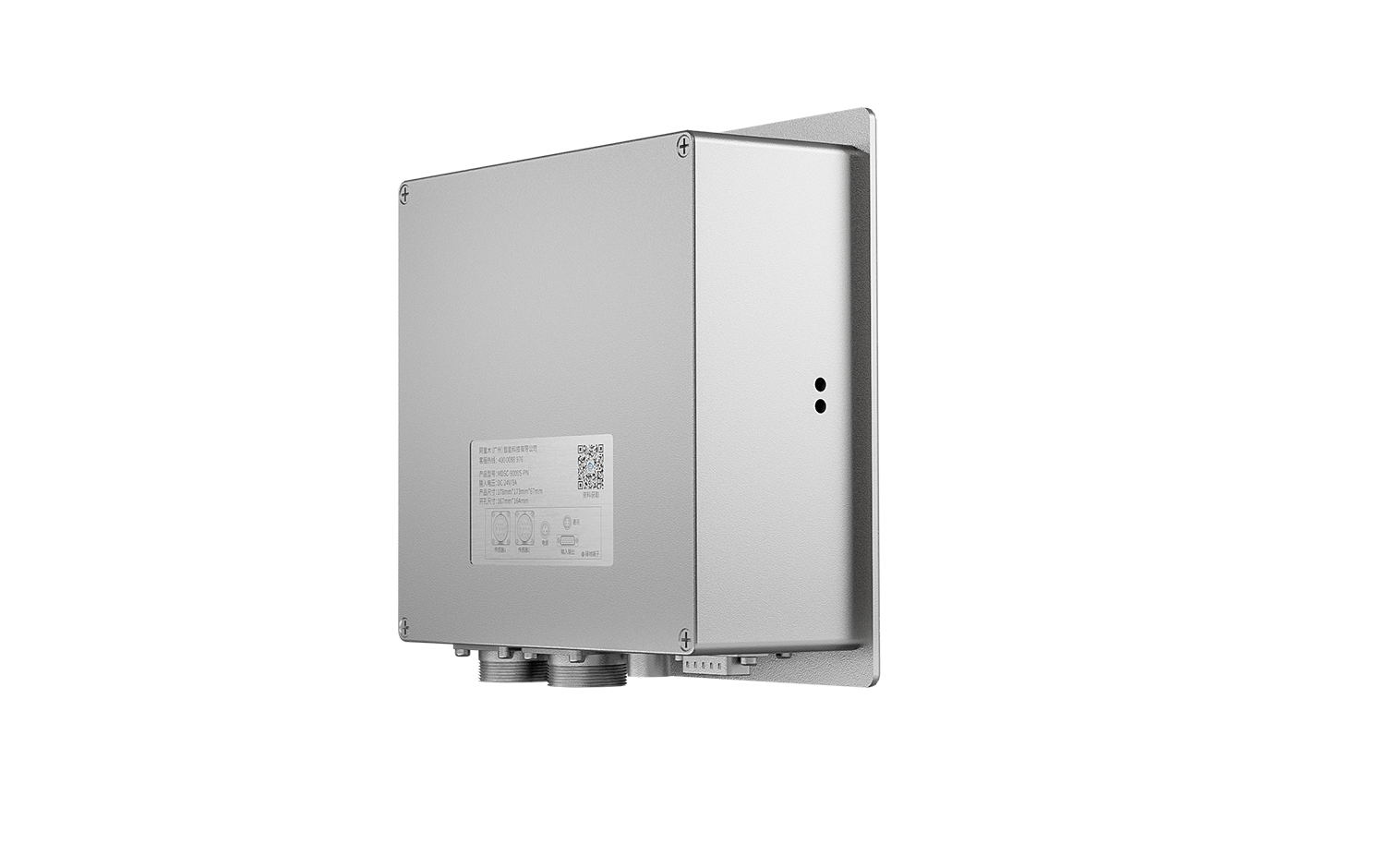

metal double sheet detector MDSC-9000T
- Adopts a dual-channel design, supporting dual-station and multi-point simultaneous detection; compatible with magnetically permeable/non-magnetically permeable material detection; equipped with a built-in thickness measurement function to prevent material errors from the source; has 999 sets of built-in recipes for efficient and convenient multi-mode production changeover; supports mainstream communication protocols such as 485/Profinet/EtherCat to achieve intelligent system control.
-
Detection Thickness
Magnetic Materials0.2-4.0mm
Stainless
Copper0.2-3.0mm
Aluminum0.2-4.0mm
Features
Built-in Sheet Material Storage Recipe
999 Groups of Recipes, Enabling Efficient Product Changeover

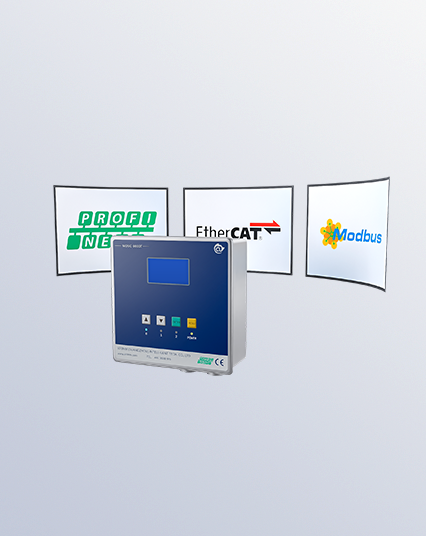

Supports Communication
Compatible with mainstream communication protocols such as 485/Profinet/EtherCat

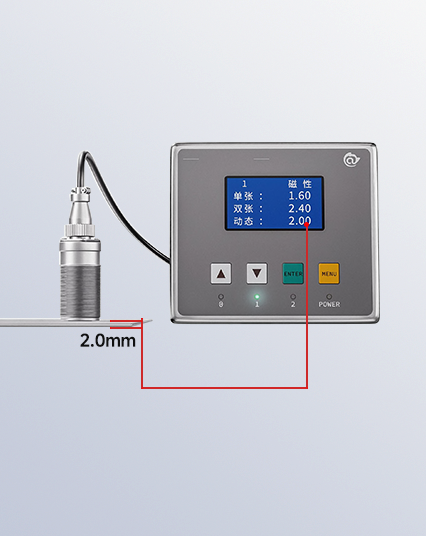

Equipped with Thickness Measurement Function
Prevents Incorrect Material Loading

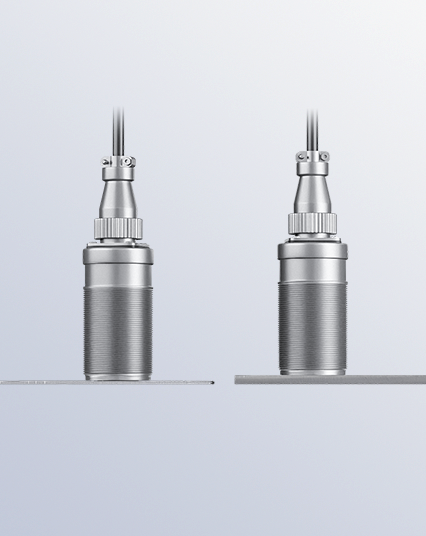

One controller connected to 2 sensors
Capable of simultaneous double-stamping-process stack detection
The two probes can detect different thicknesses
Suitable for dual-mode stamping/welding production lines, reducing false detections
Specifications
| Main Unit Specifications | |||
| Response Speed | 200pcs/min | ||
| Operating Voltage | 24V DC，+6V/-2V | ||
| Power Consumption | 60W（ Measurement :Less than60 W, Idle :<12 W） | ||
| Inrush Current | 5A 1ms | ||
| Ambient Temperature | 0℃~50℃ | ||
| Size | Embedded | 178 x 178 x 67(mm) Cutout Size：167x 164(mm) |
|
| Base-mounted | 180.5 x 167.3 x 71(mm) | ||
| Protection Rating | Rear Housing | IP20 | |
| Front Panel Housing | IP65 | ||
| Weight | 1.2kg | ||
| Features |
999 recipe groups
1 opto-isolated input(s) with a common terminal 4 NPN or PNP outputs, max load: 48 VDC, 50 mA Profinet communication interface; configurable in system settings |
||
| Main Unit Dimensions |
Embedded
Base-mounted
|
||
| Sensor Specifications | |||
| Magnetic Material Measurement Range | 0.2~4.0mm | ||
| Non-magnetic Material Measurement Range | Stainless | 0.2~3.0mm | |
| Aluminum | 0.2~4.0mm | ||
| Copper | 0.2~3.0mm | ||
| Size | Diameter44mm，Length90mm | ||
| Ambient Temperature | 0℃~60℃ | ||
| Protection Rating | IP65 | ||
| Weight | 350g | ||
| Sensor Cable | Plug-in, 16 m (custom length available) | ||
| Sensor Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
