color sensor CL4
- White LED + custom light-receiving component, which can detect based on the appearance (color) of the target object, thus accurately capturing subtle color differences. In addition, since detection is performed based on appearance (color), it is less susceptible to the impact of tilt or distance changes.
Features

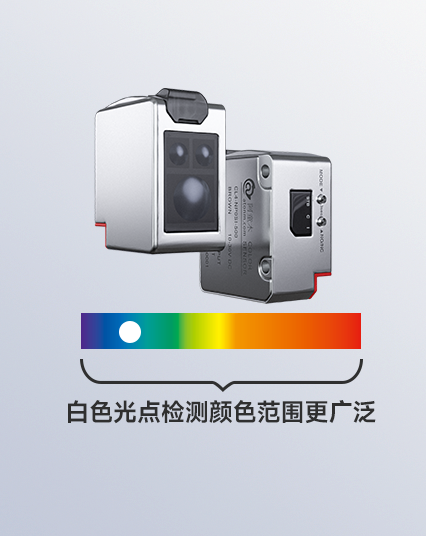

White light spot
With the high-brightness"white light spot", stable detection is still possible even at long distances
High-speed response
200μs

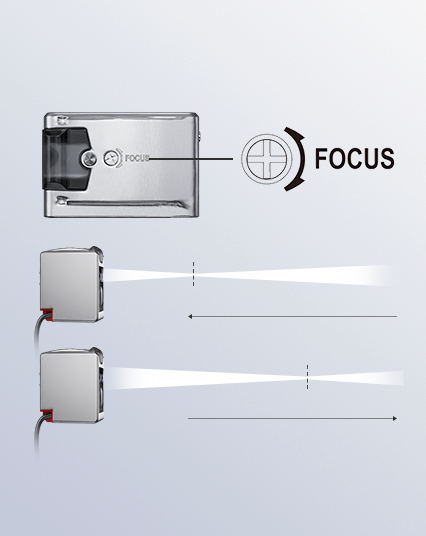

Adjustable light spot size
Stable detection is achievable even for tiny color differences

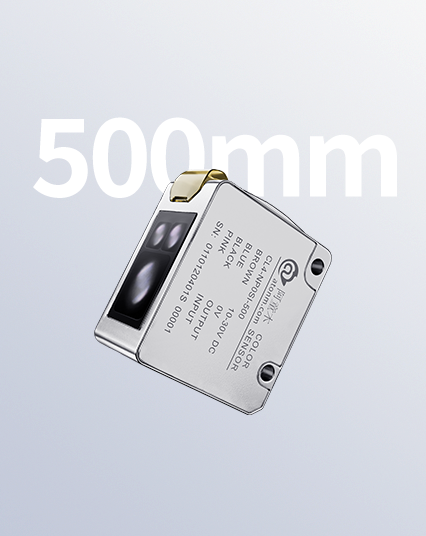

Long-distance detection
30-500mm
Specifications
| Model | NPN/PNP | CL4-NP0SI-70 | CL4-NP0SI-500 | |
| Sensing Distance | 30 ~ 70 mm | 50 ~ 500 mm | ||
| Minimum Spot Diameter | Approx 1.6×2.9 mm (at distance 50 mm) | Approx Φ3 (at distance 100 mm) Approx Φ9 (at distance 250 mm) Approx Φ20 (at distance 500 mm) |
||
| Response Time | 200μs/1ms/10ms/100ms/500ms | |||
| Light Source | White LED | |||
| Interference Reduction Function | Set different frequencies, up to 2 units | |||
| Power | Supply Voltage | 10 ~ 30 VDC with ripple（P-P）10%、Class2 / LPS | ||
| Current Consumption | 24 VDC 时 50 mA Below（without load） 12 VDC 时 100 mA Below（without load） |
24 V 时 50 mA Below（without load） 12 V 时 100 mA Below（without load） |
||
| Timer | OFF/ON delay/OFF delay/Single Shot | |||
| I/O | Control Output |
NPN open-collector / PNP open-collector switchable Below 30 V, below 50 mA, residual voltage below 2 V N.O./N.C.Switchable |
||
| External Input |
Tuning/Stop Emission Switchable Short-circuit Current NPN：1 mA Below/PNP：2 mA Below |
|||
| Protection Circuit | Power reverse connection protection, power surge protection, output overcurrent protection, output surge protection | |||
| Ambient Illuminance | Incandescent lamp： 10000 lx Below Direct sunlight：20000 lx Below | |||
| Ambient Temperature | -20 ~ +50℃（Non-freezing） | |||
| Relative Humidity | 35 ~ 85%RH（Non-condensing） | |||
| Shock Resistance | 1,000 m/s² X、Y、Z Each direction 6 times | |||
| Vibration Resistance | 10 ~ 55 Hz Double amplitude 1.5 mm In X, Y, Z direction, each 2 hours | |||
| Protection Rating | IP65 | |||
| Material | Housing: zinc casting (chrome plated); indicator cover: PPSU; button: stainless steel | |||
| Weight | 128g | |||
| Dimensions |
|
|||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
