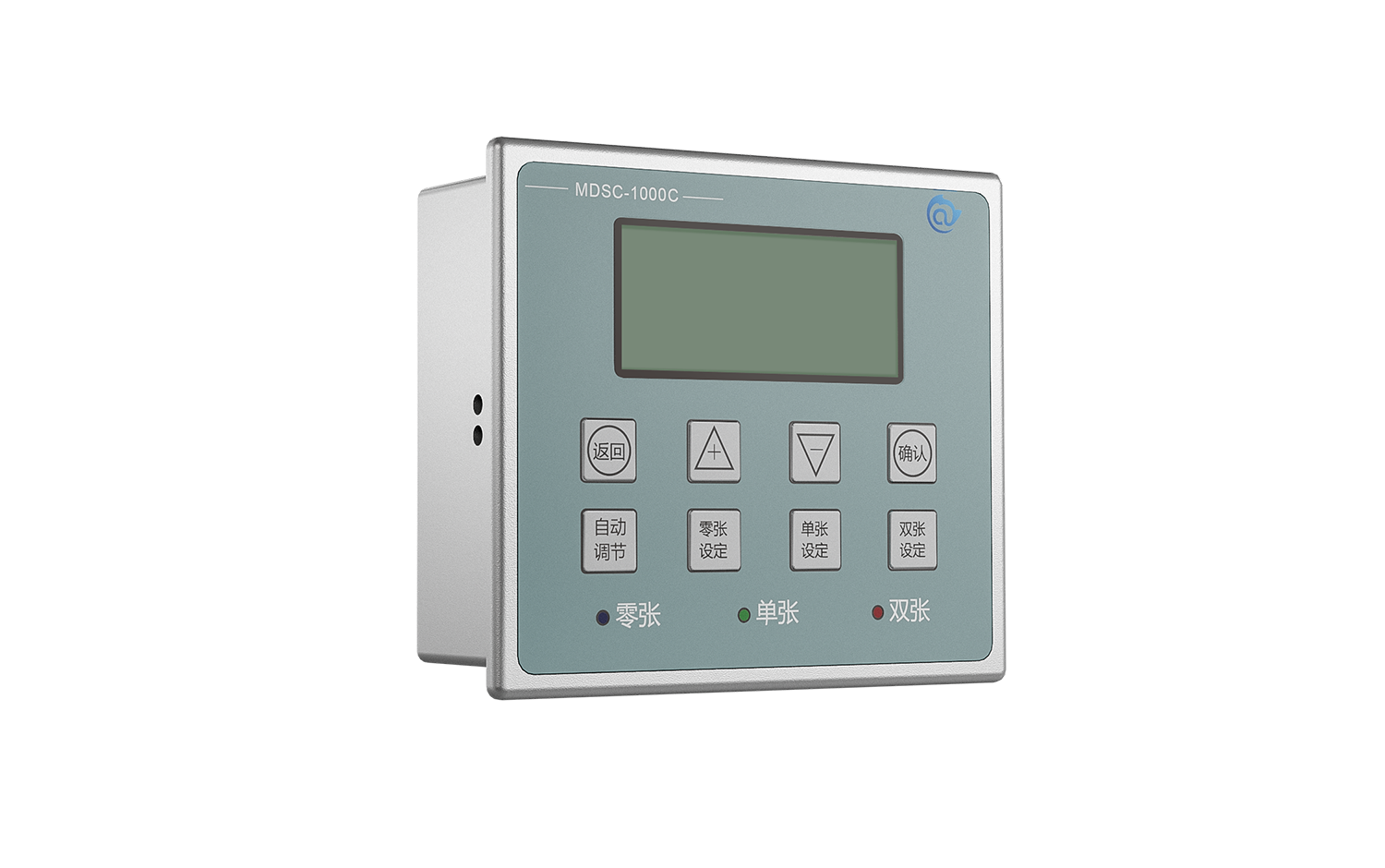

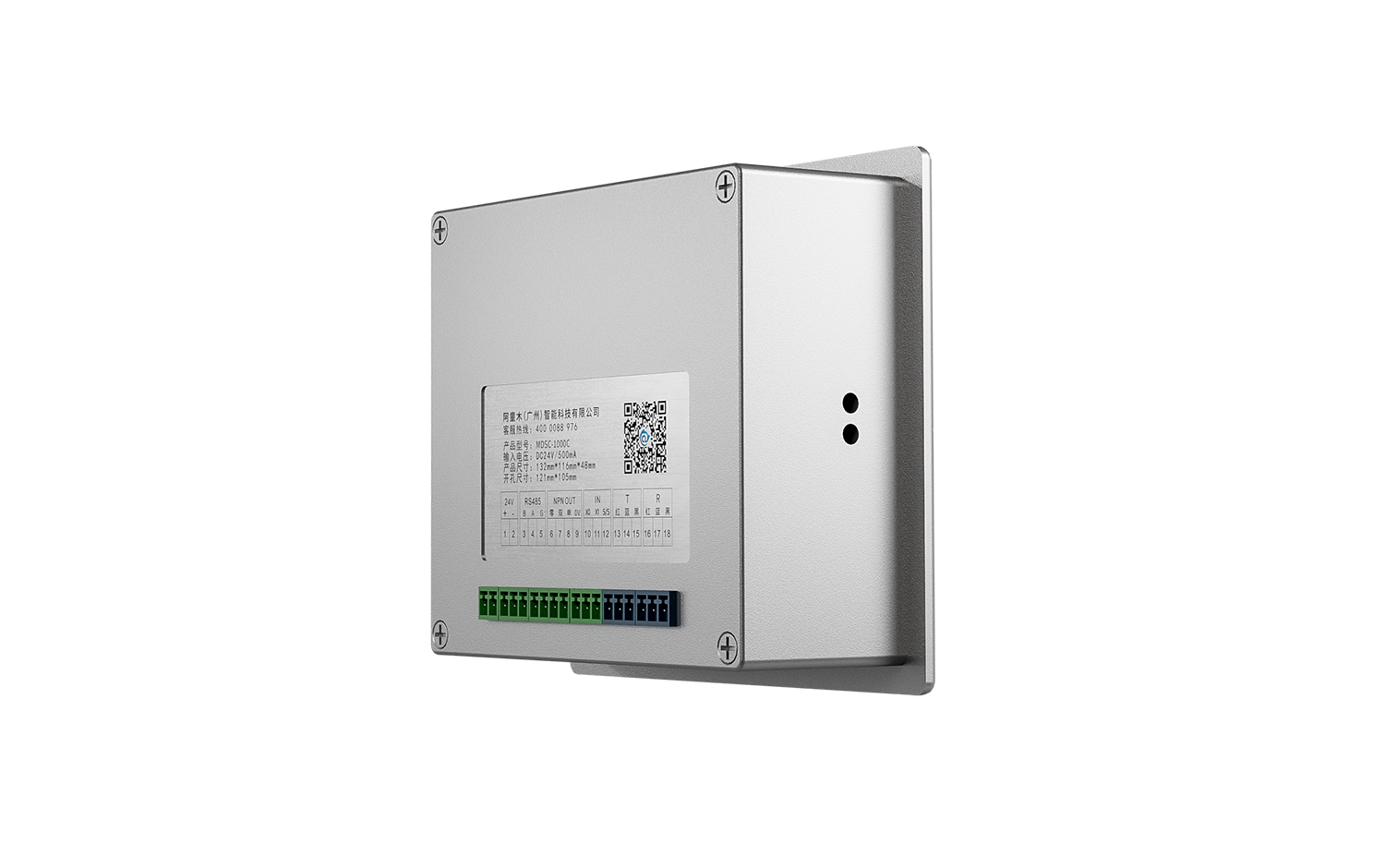

metal double sheet detector MDSC-1000C
- Universal Double Sheet Detector with Communication Function - It features a built-in Modbus 485 communication module while ensuring high reliability, suitable for multi-material switching without the need to re-learn material parameters. Double Material Detection Sensor MDSC-1000C _ Stamping Double Material Detection _ Double Material Overlap Detector - Atonm Technology Official Website
-
Detection Thickness
Iron
Stainless0.2-4.5mm
Copper0.1-4.0mm
Aluminum0.1-8mm
Features
Detectable for All Metal Sheets
Independent of Metal Material Types

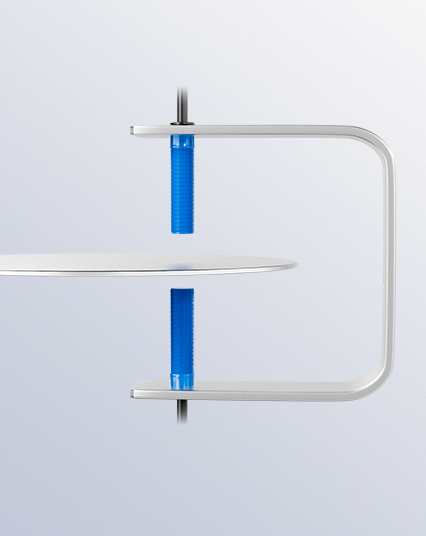

Non-contact Detection
Avoid Material Damage and Loss
Supports Communication
Built-in Modbus485 Communication Module

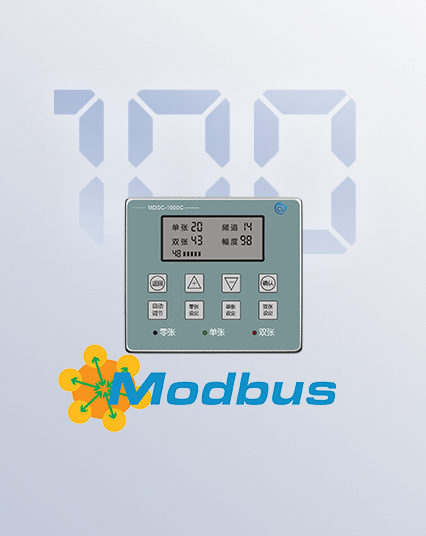

Built-in Sheet Material Storage Recipe
100 groups
Fast Response Speed
Up to 1200 pcs/min
Specifications
| Model | MDSC-1000C | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/500mA | Response Speed | 1200 pcs/min |
| Detectable Materials | Steel plate, iron plate, copper plate, aluminum plate, galvanized plate, stainless steel, etc. | Detectable Thickness | Iron/stainless steel: 0.2–4.5 mm; copper: 0.1–4.0 mm; aluminum: 0.1–8.0 mm |
| Recipe Groups | 100 recipe groups | Control Output |
NPN single/double-sheet switch signal output, max load 50 mA / 48 V
Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |

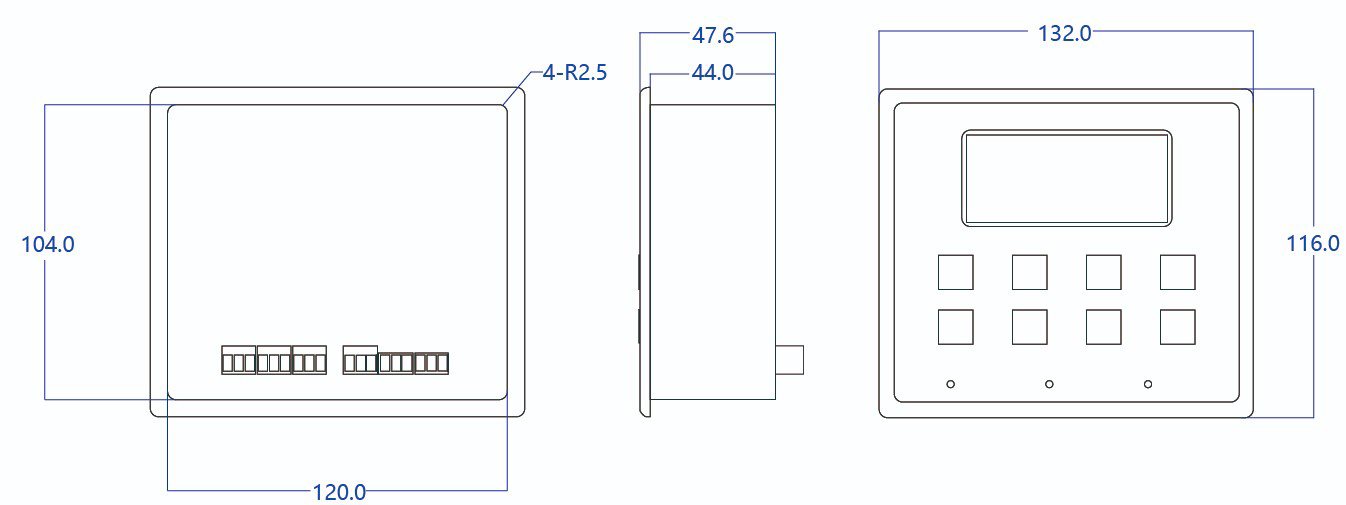

| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
