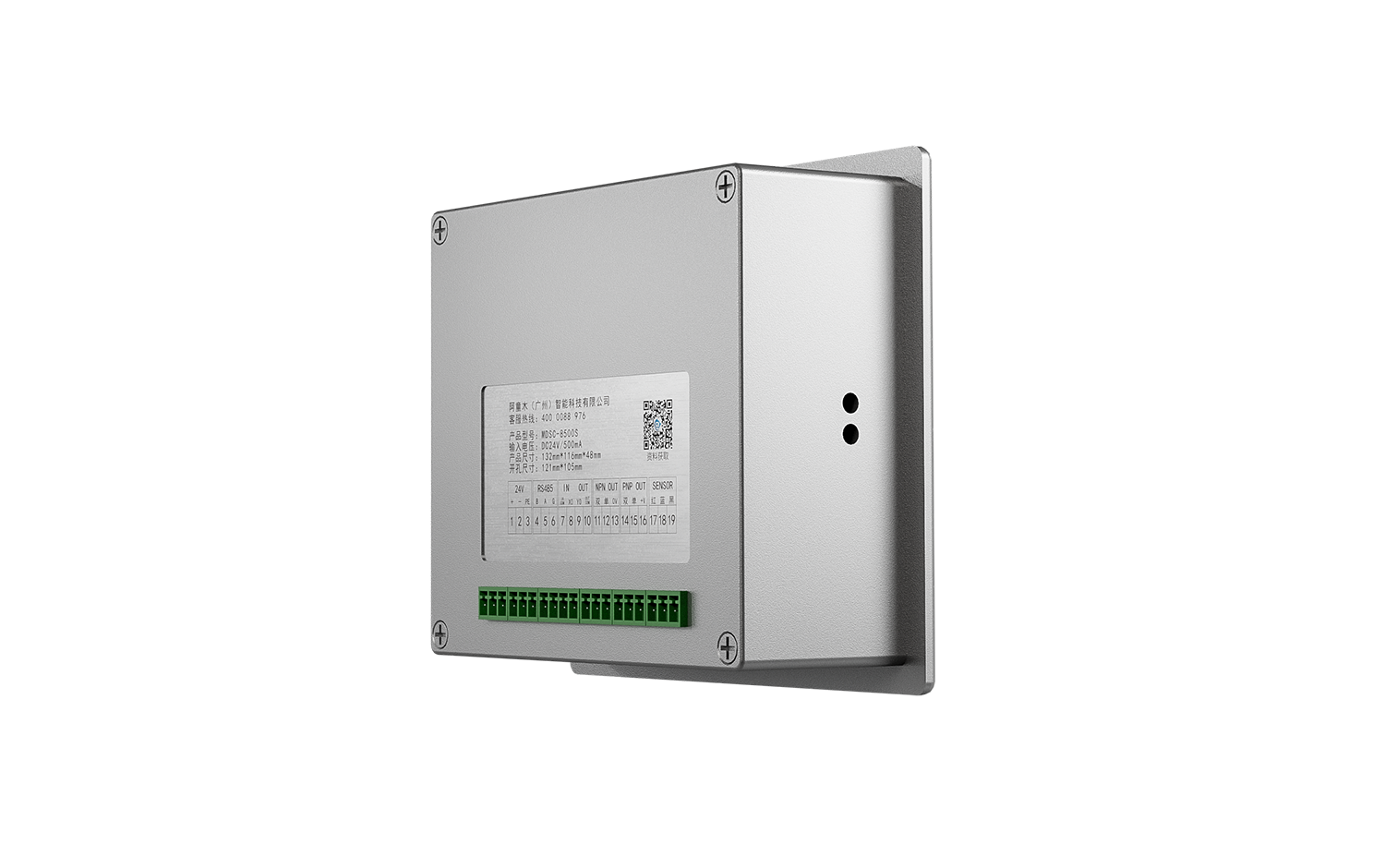

metal double sheet detector MDSC-8500S
- This compact single-probe metal sheet overlap detector is especially suitable for installation in confined spaces. It can effectively detect non-magnetic conductive metal sheets, is equipped with 485 communication function, and its design balances convenience and high efficiency.
-
Detection Thickness
Copper
Aluminum0.1 - 2.5mm
Features
Dedicated to Thin Sheet Detection
Suitable for the detection of small workpieces and thin sheets
Built-in Sheet Material Storage Recipe
100 groups
High-power Single-probe Design
Single-probe Enables Single & Double Sheet Detection
Supports Communication
Built-in Modbus485 Communication Module
Specifications
| Model | MDSC-8500S | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Input Voltage | DC 24V/500mA | Response Speed | 600 pcs/min |
| Detectable Materials | Copper sheets, aluminum sheets, aluminum alloy | Detectable Thickness | Copper/aluminum: 0.1–2.5 mm |
| Recipe Groups | 100 recipe groups | Control Output |
Single/double-sheet switch signal output, max load 50 mA / 48 V
Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |

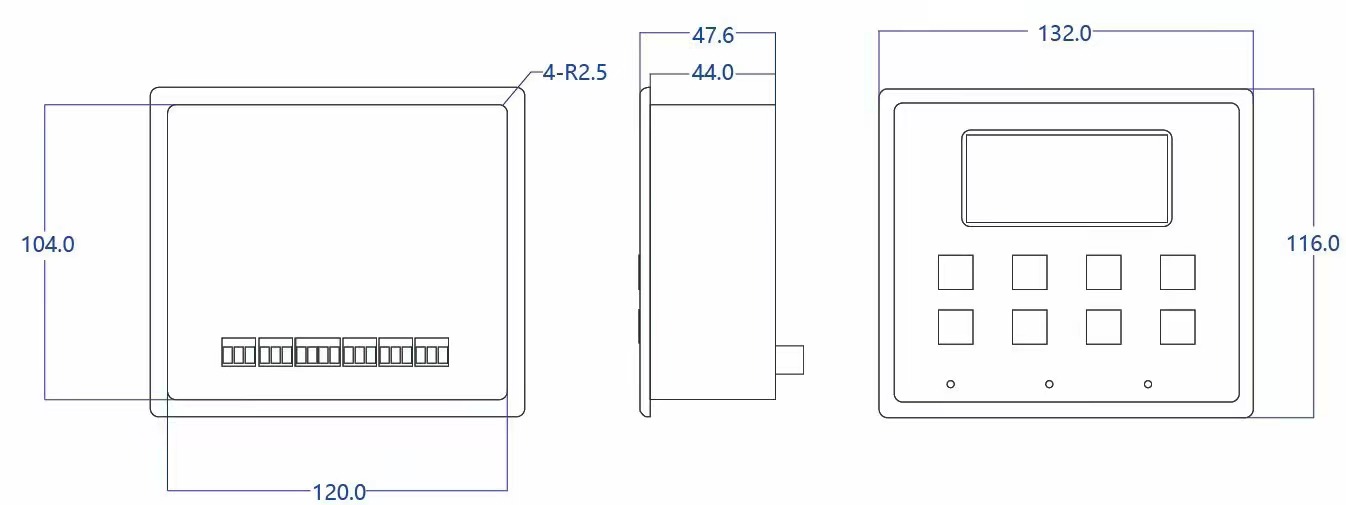

| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
