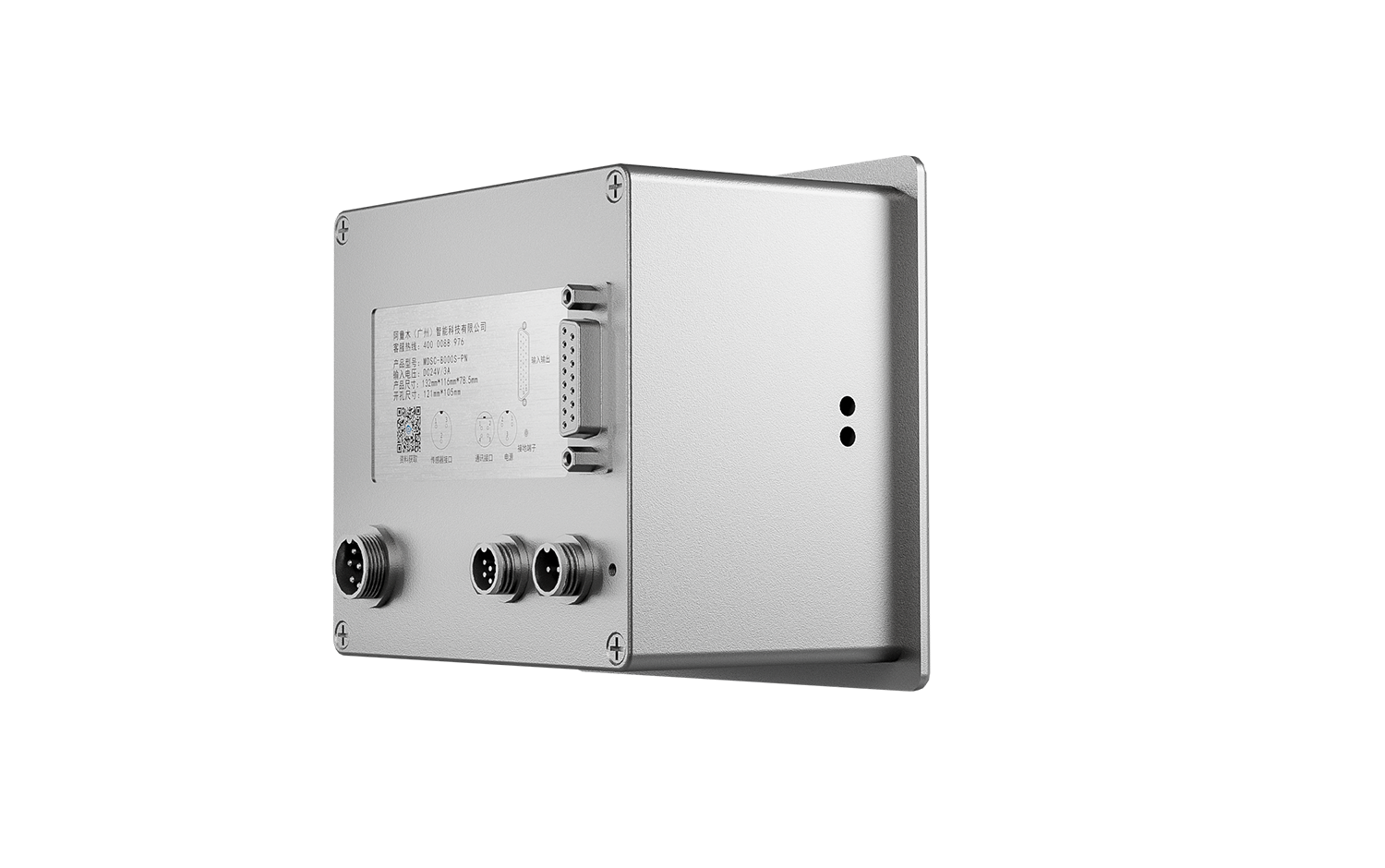

metal double sheet detector MDSC-8000T
- Provides a stable and reliable double-sheet detection and thickness monitoring solution for high-speed production lines: supports up to 200 recipe groups to meet diverse production requirements; ≤95 ms ultra-fast response for automotive stamping and welding lines operating at 20 SPM; enables thickness presetting with real-time thickness measurement from 0.2 to 4.0 mm (accuracy 3%).
-
Detection Thickness
Magnetic Materials0.2-4.0mm
Features

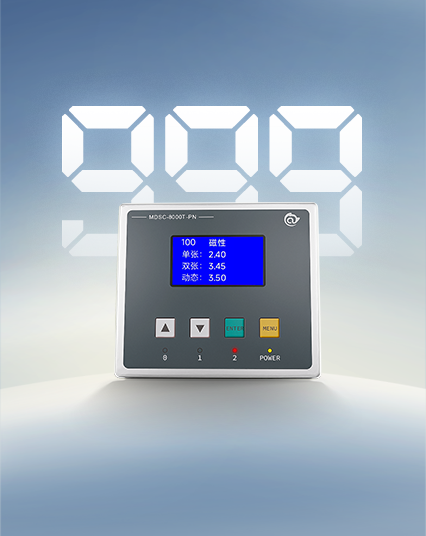

Built-in Sheet Material Storage Recipe
999 Groups of Recipes, Enabling Efficient Product Changeover

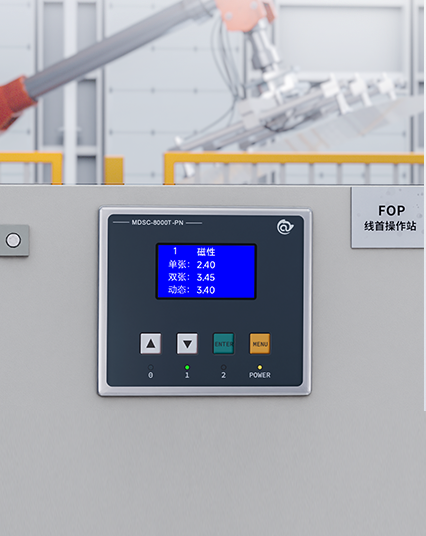

End Effector Quick-Change Adaptation
No re-learning required after replacing the end effector
Equipped with Thickness Measurement
Function Prevents Incorrect Material Loading
Response Time ≤ 95ms
suitable for 20SPM high-tempo production lines
Specifications
| Main Unit Specifications | |||
| Response Speed | 200pcs/min | ||
| Operating Voltage | 24V DC，+6V/-2V | ||
| Power Consumption | 60W（ Measurement :Less than60 W, Idle :Less than12 W） | ||
| Inrush Current | 5A 1ms | ||
| Ambient Temperature | 0℃~50℃ | ||
| Size | Main Unit | 132 x 116 x 48(mm) | |
| Cutout Size for Embedded Mounting | 121 x 105 (mm) | ||
| Protection Rating | Rear Housing | IP20 | |
| Front Panel Housing | IP65 | ||
| Weight | 730g | ||
| Features |
200 recipe groups
1 opto-isolated input(s) with a common terminal 4 NPN or PNP outputs, max load: 48 VDC, 50 mA Profinet communication interface; configurable in system settings |
||
| Main Unit Dimensions |  |
||

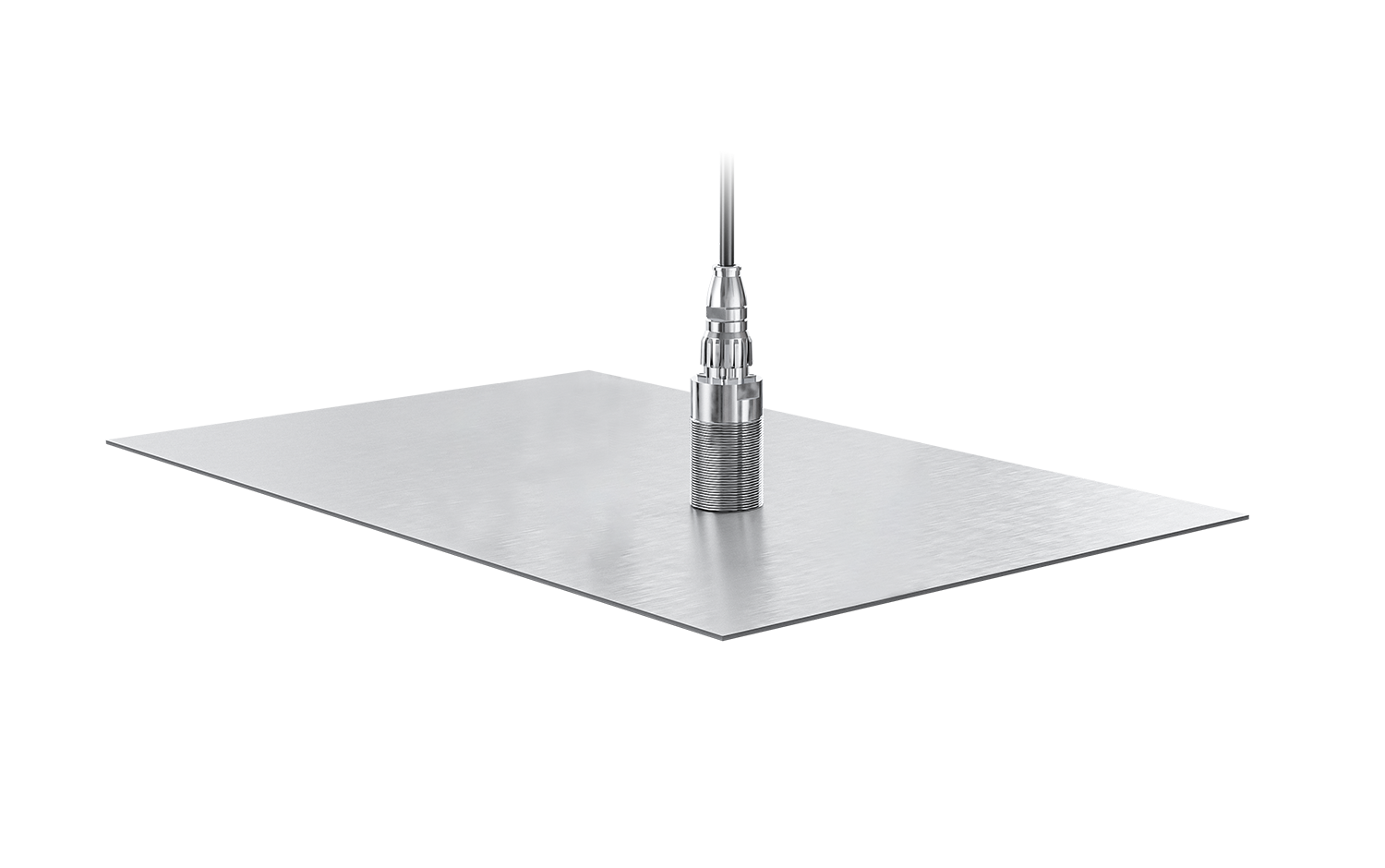

| Sensor Specifications | |||
| Magnetic Material Measurement Range | 0.2~4.0mm | ||
| Ambient Temperature | 0℃~60℃ | ||
| Protection Rating | IP65 | ||
| Weight | 350g | ||
| Sensor Cable | Plug-in, 16 m (custom length available) | ||
| Sensor Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
