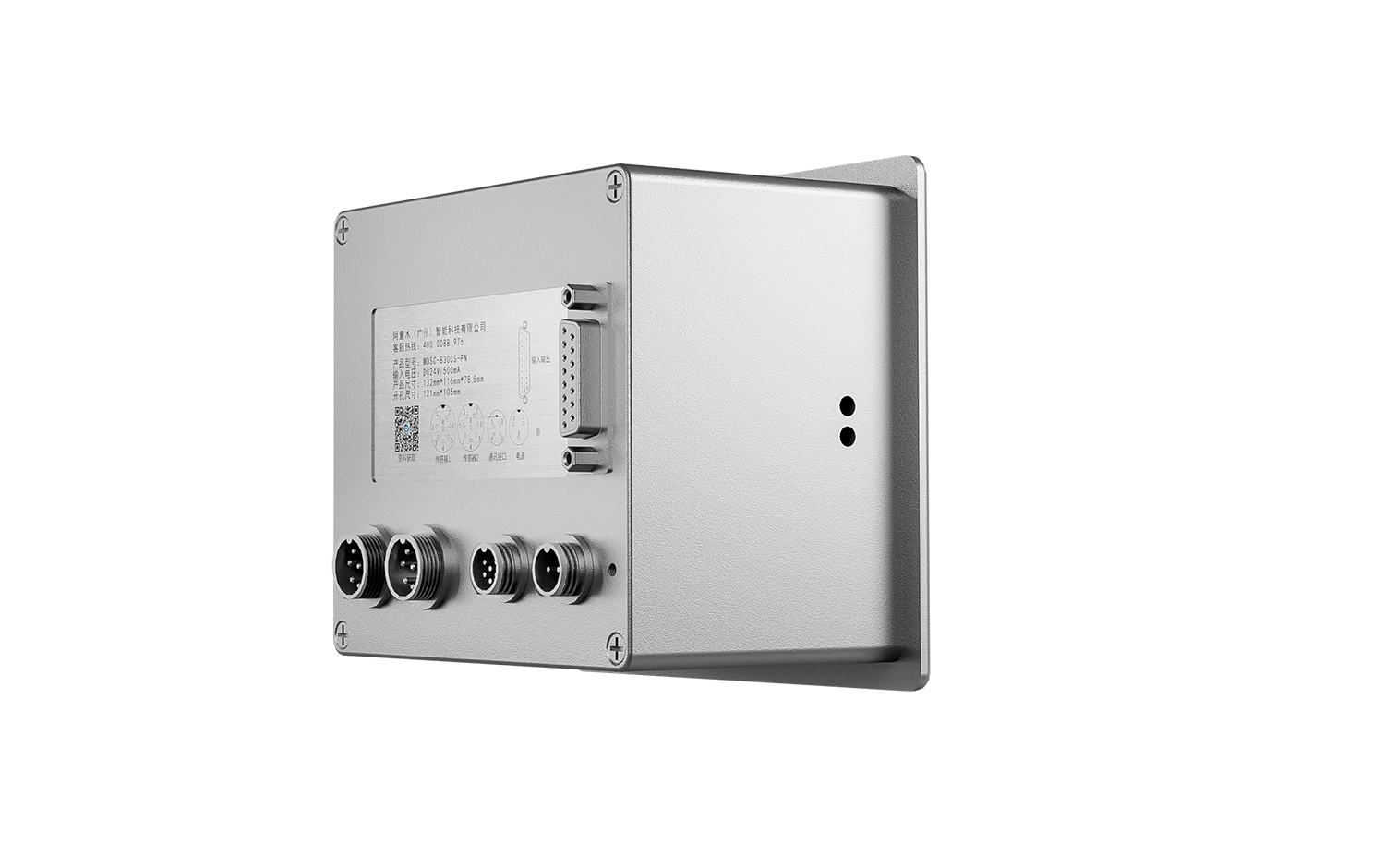

metal double sheet detector MDSC-8300S
- It can connect two sensors simultaneously and has a built-in storage for 200 sets of sheet material recipes. It is capable of detecting non-magnetic metal plates with a thickness of 0.2-4mm, and supports communication methods such as Profinet, 485, and terminal control.
-
Detection Thickness
Stainless0.2-3.0mm
Aluminum0.2-4.0mm
Copper0.2-3.0mm
Features
Built-in Sheet Material Storage Recipe
200 groups
Fast Response Speed
Up to 200 pcs/min

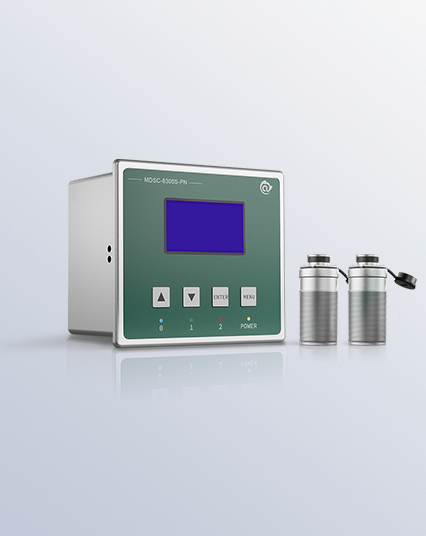

One controller connected to 2 sensors
Capable of simultaneous double-stamping-process stack detection
Supports Communication
Compatible with communication methods such as Profinet, 485 and terminal control
Specifications
| Main Unit Specifications | |||
| Response Speed | 200pcs/min | ||
| Operating Voltage | 24V DC，+6V/-2V | ||
| Power Consumption | 12W（ Measurement :Less than 12 W, Idle :Less than 8 W） | ||
| Inrush Current | 1A 1ms | ||
| Ambient Temperature | 0℃~50℃ | ||
| Size | Main Unit | 132 x 116 x 78.5(mm) | |
| Cutout Size for Embedded Mounting | 121 x 105 (mm) | ||
| Protection Rating | Rear Housing | IP20 | |
| Front Panel Housing | IP65 | ||
| Weight | 750g | ||
| Features |
200 recipe groups
6 opto-isolated input(s) with a common terminal 4 NPN or PNP outputs, max load: 48 VDC, 50 mA Profinet communication interface; configurable in system settings |
||
| Main Unit Dimensions |  |
||
| Sensor Specifications | |||
| Non-magnetic Material Measurement Range | Stainless | 0.2~3.0mm | |
| Aluminum | 0.2~4.0mm | ||
| Copper | 0.2~3.0mm | ||
| Ambient Temperature | 0℃~60℃ | ||
| Protection Rating | IP65 | ||
| Weight | 350g | ||
| Sensor Cable | Plug-in, 16 m (custom length available) | ||
| Sensor Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
