color sensor CL2
- It supports an RGB three-color light source with triple 16-bit calculation, capable of detecting nearly 3,000 colors and accurately identifying even slight color differences. Adopting an 8-channel output design, it can recognize 4 colors simultaneously. Paired with a variety of color-specific probes, it meets the detection requirements of different sizes and distances.
Features

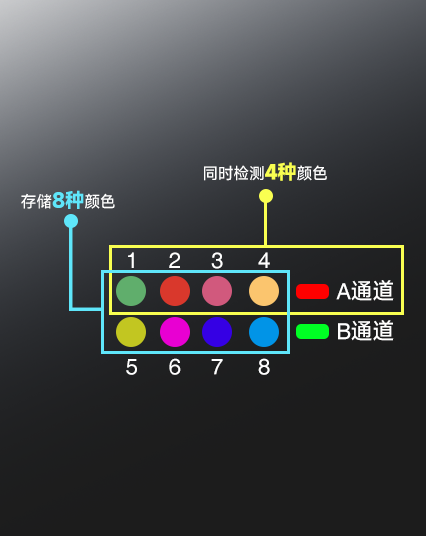

8-channel design, capable of identifying 4 colors simultaneously
Multiple detection modes are suitable for various application requirements, helping enterprises save space and costs

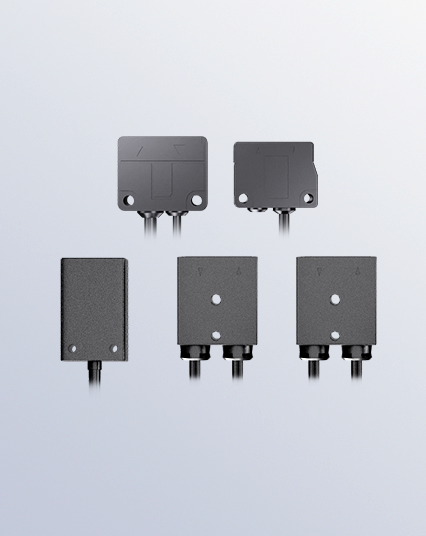

Wide application range
Multiple sensor heads available for selection to meet different detection scenarios
Fast response speed
200μs
Accurately identify subtle color differences
RGB three-color light source supporting triple 16-bit calculation, capable of accurately identifying subtle color differences
Specifications
| Model | CL2-N3A1(NPN) / CL2-P3A1(PNP) | ||
| Response Time | 200μs（HSP）/1ms（FINE）/ 4ms(TURBO)/8ms(SUPER) | Protection Circuit | Reverse polarity protection, overcurrent protection, overvoltage |
| Control Output | NPN (PNP) set electrode open circuit X4 channel, maximum 40 VDC (30 VDC), 1 output reaches 100 mA, total of 4 outputs reach 200 mA, residual voltage: maximum 1.0 V | ||
| External Calibration Input | Input Time： Min 20ms |
External Switch Input (C/C+I Mode) External Offset Input (Super I Mode) |
Input Time：Min 20ms |
| Timer Function | Timer OFF/OFF-delay/ON-delay/Single shot, timer time: adjustable from 1 to 1,000 ms (for each field respectively) | ||
| Power | 24VDC，Fluctuation（P-P）：Max 10% | Current Consumption | Normal mode: 1.5 W (max. 62.5 mA), ECO mode: 1 W (max. 42.0 mA) |
| Ambient Temperature | -10 ~ +55℃，Non-condensing | Vibration Resistance | 10 ~ 55Hz，1.5mm Double amplitude，In X, Y, Z direction, each 2 hours |
| Material | Polycarbonate | Weight (with 2 m cable) | About 180g |

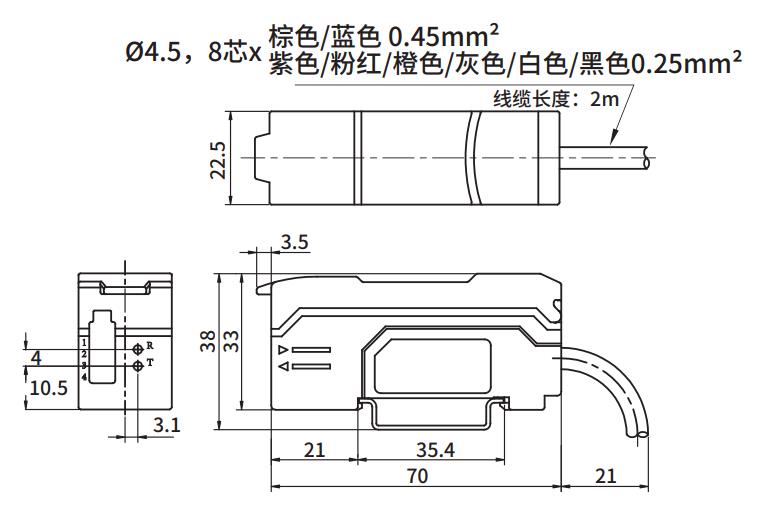

| Dimensions |
|
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
