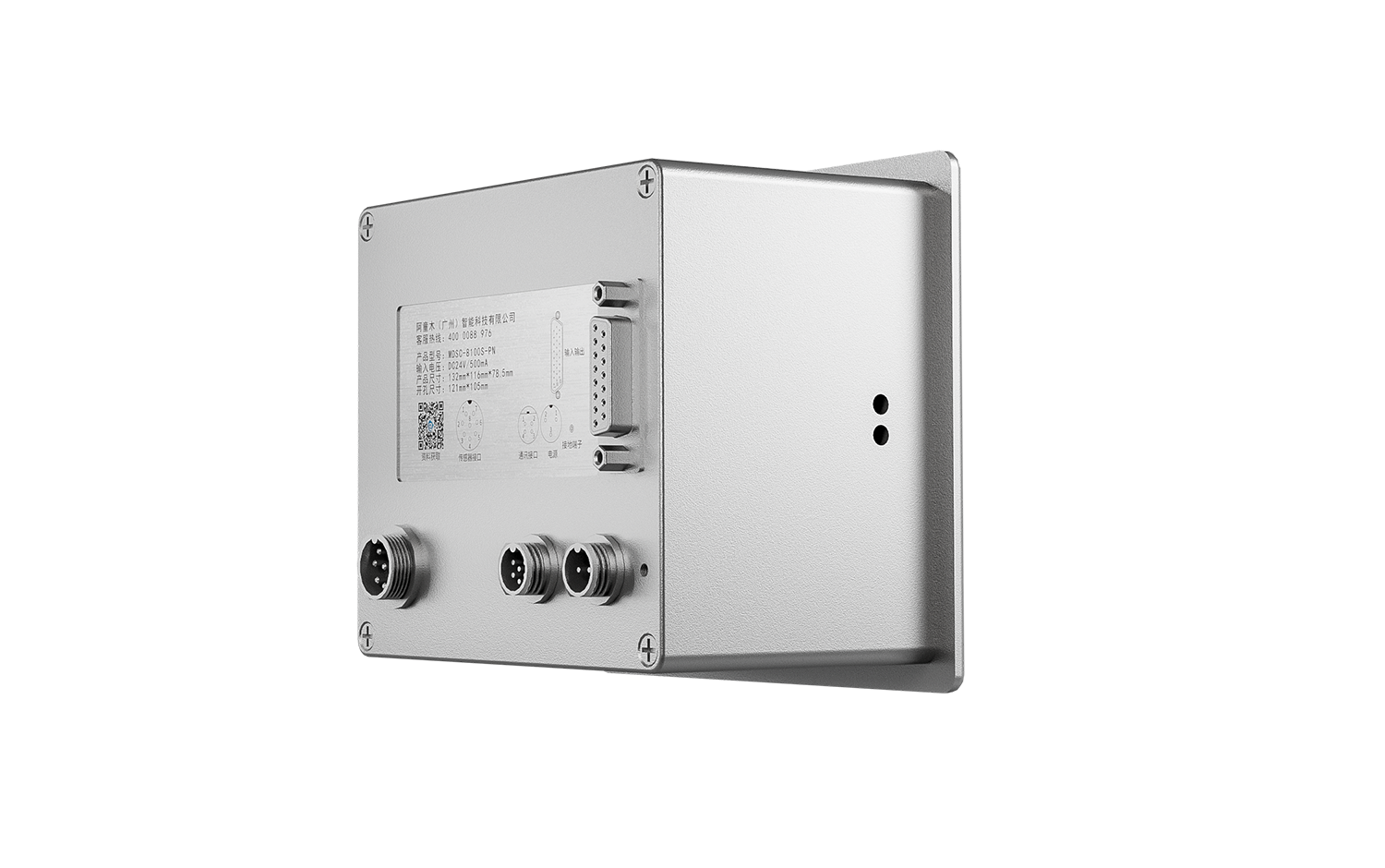

metal double sheet detector MDSC-8100S
- Tailored for large sheet materials in the automotive manufacturing and auto parts production industries, it meets the requirement of single-side sensor installation and achieves double-sheet feeding detection with a single-sided probe.
-
Detection Thickness
Copper0.2-3.0mm
Aluminum0.2-4.0mm
Stainless0.2-3.0mm
Features
Built-in Sheet Material Storage Recipe
200 groups

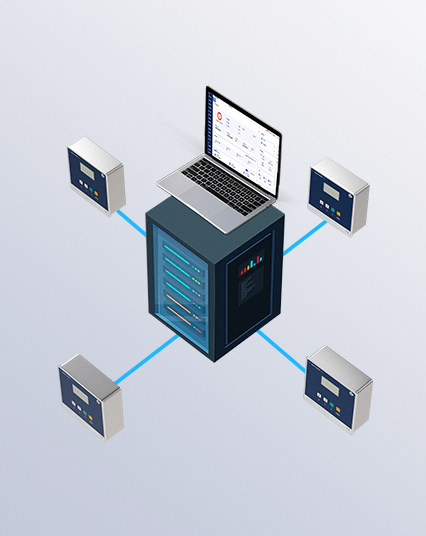

Single Sheet Learning
Requiring Only Single Sheet Material Learning

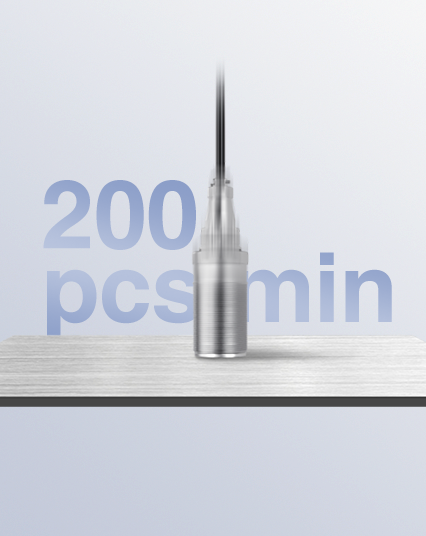

Fast Response Speed
Up to 200 pcs/min

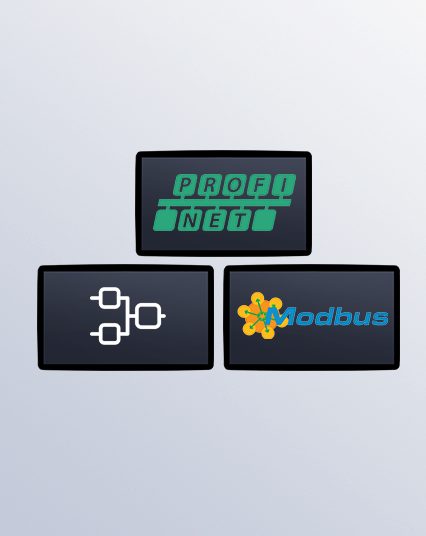

Supports Communication
Built-in Modbus485 Communication Module
Specifications
| Model | MDSC-8100S | ||
| Main Unit Size | 132mm*116mm*48mm | Cutout Size | 121mm*105mm |
| Rated Voltage | DC 24V/500mA | Response Speed | 200 pcs/min |
| Detectable Materials | Non-magnetic metal materials such as aluminum and copper | Detectable Thickness | Copper/stainless steel: 0.2–3.0 mm; aluminum: 0.2–4.0 mm |
| Recipe Groups | 200 recipe groups | Control Output |
NPN single/double-sheet switch signal output, max load 50 mA / 48 V
Note: The output pulse width for single-sheet/double-sheet signals is 50 ms by default; adjustable range: 5–500 ms |
| Dimensions |  |
||
Note: Products are continuously being innovated and their performance is continually enhanced. The technical specifications provided are for reference only.
