Automotive Production Line Implementation Project | Atonm 8200S Safeguards Stamping Die Safety (Application of Dual Material Detection for Magnetic Steel Plates)

I. Cooperation Background

The customer is a well-known enterprise in the field of automotive stamping automation equipment, serving many high-end automakers worldwide with extensive experience in the construction and optimization of precision production lines. During the construction of its new automotive component stamping production line, the customer selected the Atonm MDSC-8200S 1-to-2 single-probe double-sheet detector for the critical double-material detection stage. Practical adaptation and verification have confirmed that this equipment meets the production line’s stringent technical and operational requirements.

II. Core Project Overview

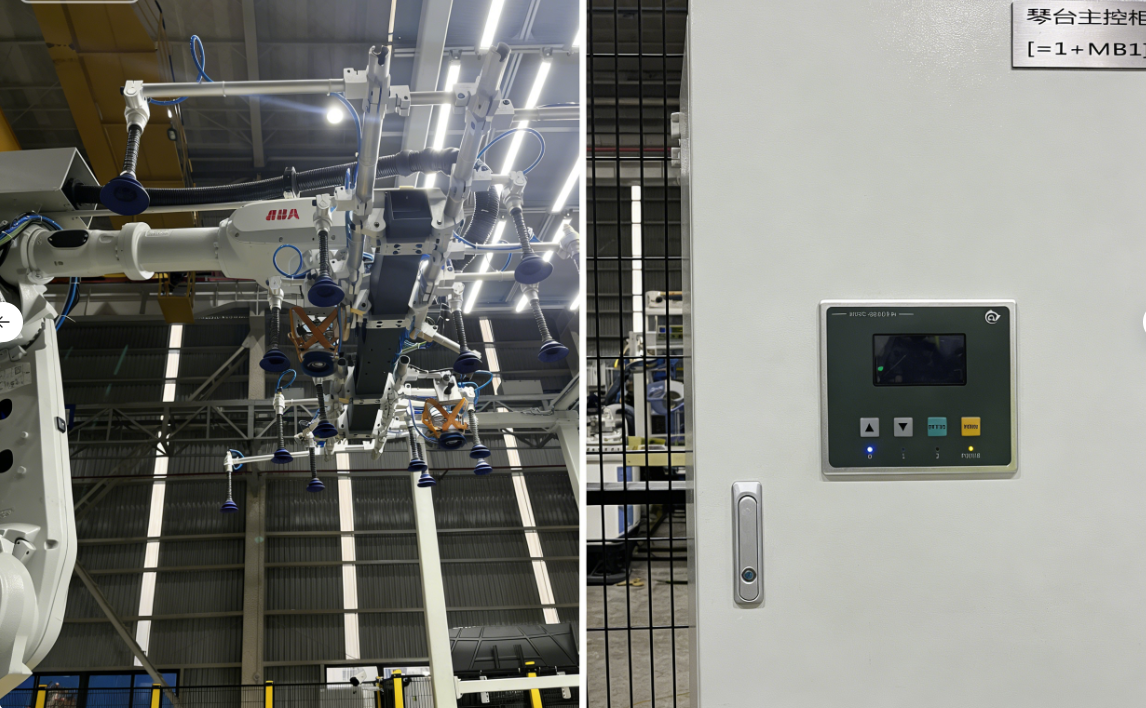

1.Production Line Positioning: A brand-new high-end stamping line for automotive structural parts, dedicated to high-precision processing of automotive components. Equipped with high-speed manipulators, the line achieves internationally advanced levels of cycle time and machining precision, satisfying the strict demands of stamping core automotive structural parts.

2.Core Requirements: For magnetic steel plate stamping scenarios, resolve mold damage and productivity loss caused by overlapping sheets. Two single probes are required to inspect the same magnetic steel plate at different positions to improve detection reliability, while balancing detection accuracy and cost-effective domestic supply.

3.Equipment Selection: Atonm MDSC-8200S 1-to-2 single-probe double-sheet detector. Based on the eddy-current induction principle, it delivers excellent detection compatibility for magnetic steel plates. Its 1-to-2 architecture supports two probes, enabling multi-position detection on a single large magnetic steel plate. Combined with stable system integration capabilities, it was chosen as the double-sheet detection solution for the new production line.

III. Core Features of the Atonm MDSC-8200S Double-Sheet Detector

1.Strong Adaptability

Designed with a 1-to-2 architecture, one controller can drive two probes. Specially developed for magnetic materials, it simultaneously inspects different positions of the same magnetic steel plate. Using eddy-current induction technology matched to magnetic material properties, it improves the comprehensiveness and reliability of double-sheet identification. No additional equipment is needed, fitting the layout of magnetic steel plate stamping lines and effectively controlling capital investment.

2.High Precision & Stability

Detection algorithms optimized for magnetic metals. Detection thickness covers 0.2–4.0 mm magnetic steel plates, with a response speed of 160 ms, suitable for high-speed stamping lines. It effectively prevents equipment damage from double-sheet errors and adapts to complex working conditions in magnetic steel plate stamping.

3.Seamless Integration

Compatible with Profinet and RS485 protocols, enabling seamless connection with the production line PLC system. Supports quick switching of 200 recipe groups to meet flexible production requirements for multiple vehicle models.

4.High Cost Performance

Offers significant advantages over imported equivalent devices in purchase cost, technical support, and after-sales service. Supported by a local technical service team, it provides higher operational and maintenance efficiency than imported equipment, helping the production line reduce costs, improve efficiency, and achieve independent control.

IV. Application Results & Value

1.Production Line Performance

Achieves full interception of double magnetic steel plates with zero missed detections and zero false detections, ensuring stable operation from the start of stamping production. No downtime incidents caused by double-sheet issues have occurred, and line productivity has increased by more than 15% compared to expectations.

2.Brand Value

Selection by a leading industry enterprise validates the reliability of Atonm products in automotive-grade precision detection scenarios, providing practical reference for domestic detection equipment applications in this field.

3.Industry Value

Forms a mature application case of domestic double-sheet detection in automotive stamping lines. With core technologies, Atonm supports the independent upgrade of the detection link in the automotive industry chain.

V. Appendix

Equipment Core Parameters: Includes key indicators of the MDSC-8200S for magnetic steel plates, such as detection range, response speed, communication protocols, 1-to-2 control characteristics, and electromagnetic induction adaptation

Based on this mature application in the magnetic steel plate stamping scenario, Atonm will continue to optimize detection algorithms and equipment performance, further expand the adaptation scenarios for complex working conditions such as multi-material and high-cycle automotive stamping, and provide more targeted domestic double-sheet detection solutions for the industry.
